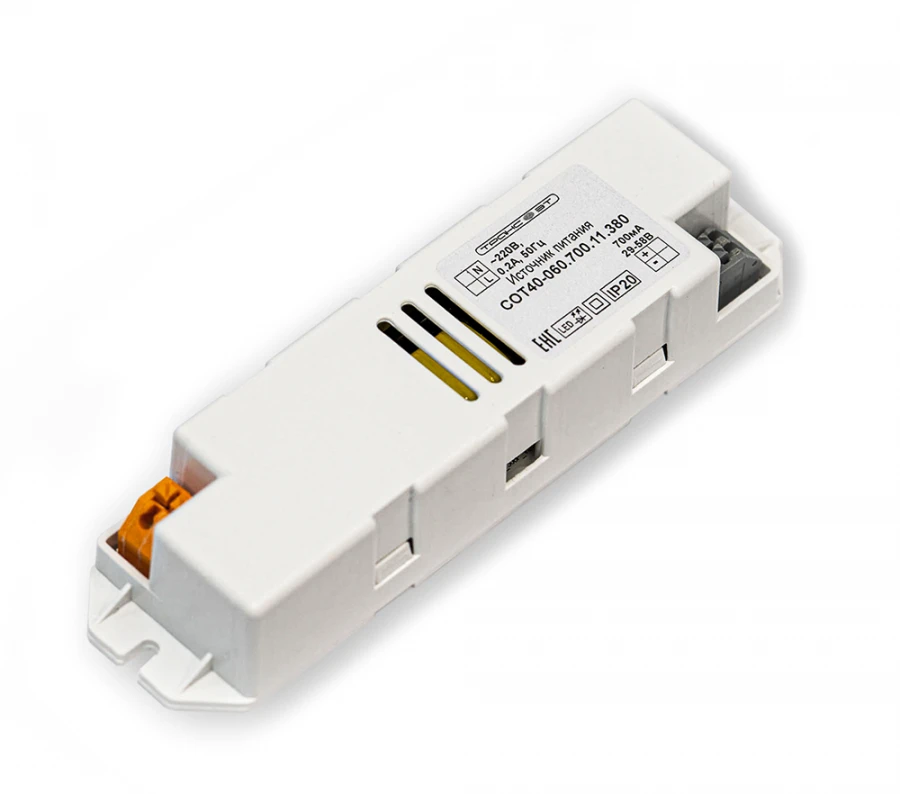

LED Matrix Power Supply COT40-060.700.11.380 for Reliable Operation
Manufacturer:
TRANSET LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for supplying stabilised current to LED matrixes
Specifications
Output current
mA 700±5%
Warranty
3 years
EMC 9 kHz - 30 MHz
Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"
Degree of protection of the shell
IP 20
Dimensions of the source (DxWxH) mm
144 x 38 x 25,5
Weight, max.
0.1 kg
Output short-circuit protection
Got it
Protection against output voltage overshoot
Got it
Protection in case of AC input voltage 380 Veff
Got it
Provides light ripple factor, not more than
1 %
Electrical insulation strength (input-output), effective value
Weff 1500.
Galvanic isolation input - output
Got it
Maximum load power
40 W
Operating range of output voltage
29...58 V
Temperature deviation of output current value in the operating temperature range, not more than
2 %
efficiency, at least
89 %
Current consumption
0.2 A
Power factor, not less than
0.95
Input voltage frequency
50±4%
Maximum allowable AC input voltage
Weff 400.
AC input voltage limit range
90...270 V
AC input voltage operating range
Weff 176-264.
Country of manufacture
Russia
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
