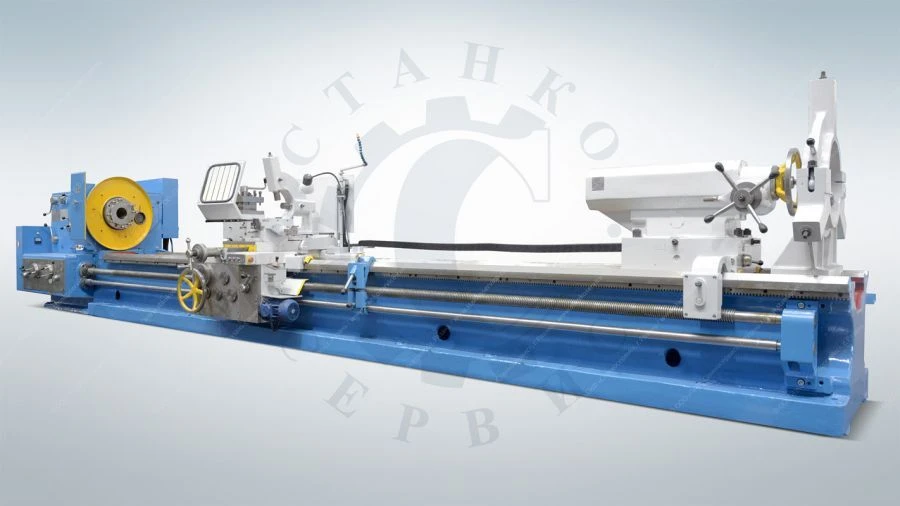

Lathe Machine for Turning and Thread Cutting 1N65-18 - Versatile Metalworking Tool
Manufacturer:
STANKOSERVIS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch
Specifications
Type of product according to PP RF 616
Turning and screw-cutting machines (universal, with CNC, CNC)
Height
1880 mm
Width
2320 mm
Length
21410 mm
Spindle speed limits
5...500
Roughness of the cylindrical surface of the sample product after its finish machining
Ra 2.5 µm
Accuracy class of machine tools according to GOST 8-82
?
Machine weight
30300 kg
Height of the tool to be mounted
SBVVBG mm
Main motion drive power
30 kW
Highest cutting force Pz
41
Highest torque on the spindle
9,5
Speed of rapid longitudinal movements of the caliper
3000
Step limits for machinable modular threads
0.5-24 module
Step limits for machinable inch threads
24-1/4 threads per 1 inch
Step limits for machinable metric threads
1-96 inch
Maximum lateral movement of the slide
700 mm
Maximum longitudinal movement of the slide
17600 mm
Diameter of the cylindrical bore in the spindle
128 mm
Largest diameter of the workpiece to be mounted above the bed
1000 mm
Largest diameter of the workpiece to be machined above the bed
1000 mm
Longest workpiece length
18000 mm
Largest diameter of the workpiece to be mounted and machined above the slide
650 mm
Speed of rapid transverse movements of the slide
1000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
