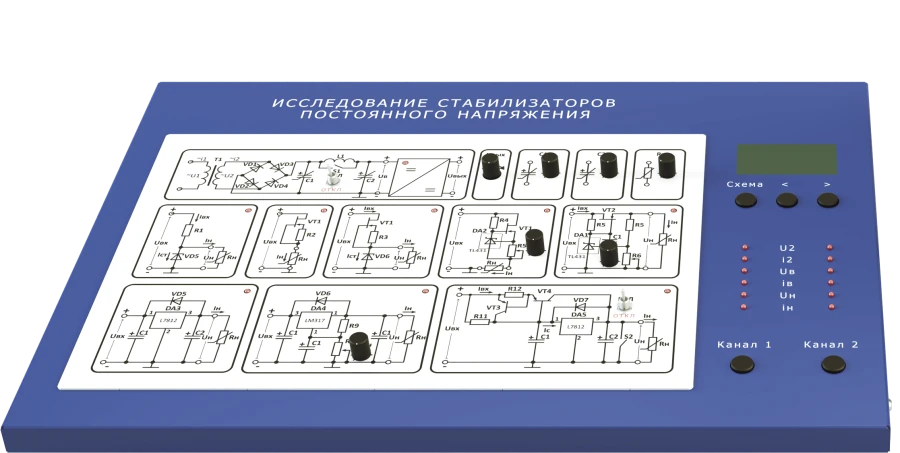

Laboratory Setup for Studying Voltage Stabilizers (EE-SPN) - Analyze Performance and Characteristics

Research of various circuits and modes of DC voltage and current stabilisers. Determination of basic parameters and characteristics of parametric and integral stabilisers under variation of input voltage and load parameters. Study of characteristics of single-phase bridge rectifier and smoothing filter. The list of works performed on the training stand: - Study of single-phase bridge rectifier - Study of parametric voltage and current stabilisers - Study of precision current stabiliser based on TL431 chip - Study of precision voltage stabiliser based on TL431 chip - Study of integrated voltage stabiliser - Study of regulated integrated voltage stabiliser - Study of integrated voltage stabiliser with short-circuit protection
