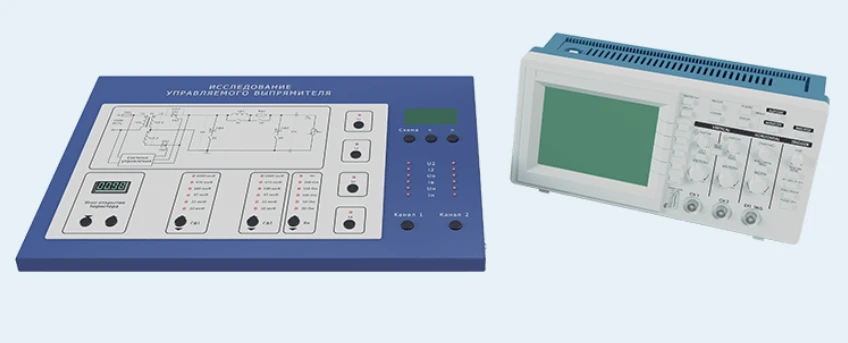

Laboratory Setup for Controlled Rectifier Investigation (EE-UV-1) - Explore Voltage Stabilizers

Study of various circuits and modes of DC voltage and current stabilisers. Determination of basic parameters and characteristics of parametric and integral stabilisers under variation of input voltage and load parameters. Study of characteristics of single-phase bridge rectifier and smoothing filter. List of works performed on the training stand: - Investigation of controlled rectifier - Investigation of smoothing filters of rectifiers
