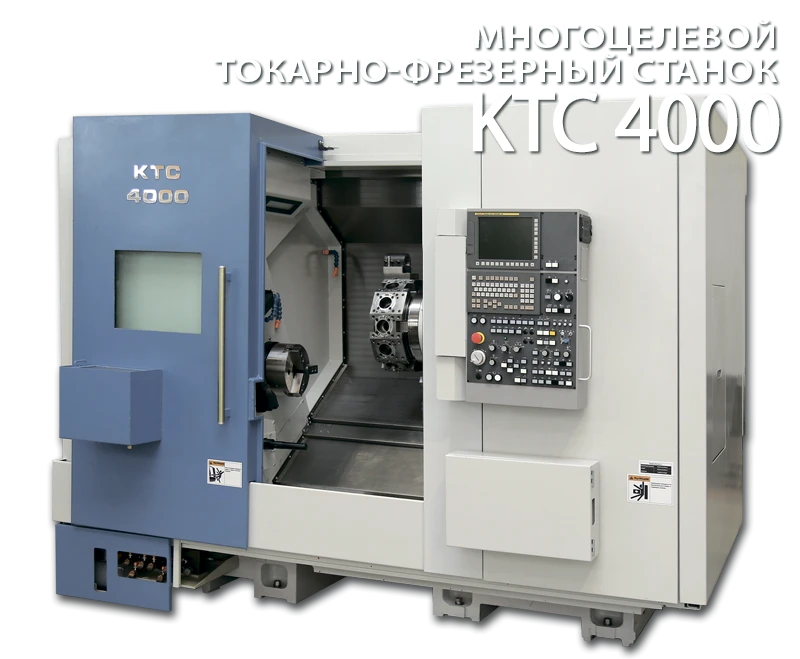

Tokarno-milling machining centre "KTS" model and its modifications is designed for turning, boring, drilling, thread cutting, gear cutting, chiselling, chiselling and milling works, as well as precise machining of complex workpieces (drive tool power from 3.7 to 7.5* kW) on workpieces of various materials weighing up to 500* kg, length from 480 to 1300* mm and maximum machining diameter from 215 to 500* mm using turning and axial tools. Main spindle power up to 22* kW. Auxiliary spindle power up to 15* kW. Stroke in X= from 180 to 325* mm, Y= from 80 (±40) to 120 (-50...+70)* mm (can be produced without Y axis), Z= from 530 to 1470* mm, A (counterspindle movement optional)= from 500 to 1480* mm.
* - It is possible to change the parameters according to the customer's technical task. .
