Available for Import

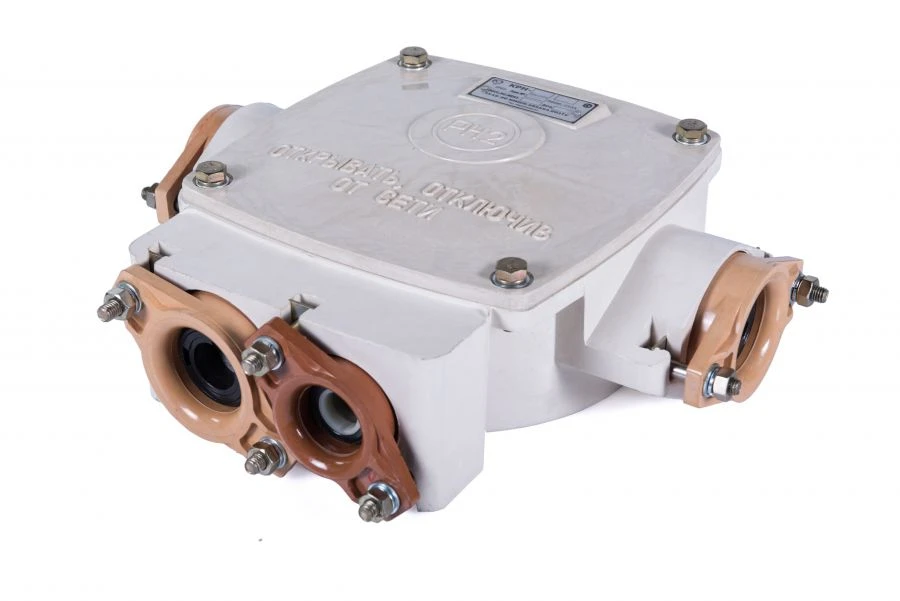

Junction Box Type KRN for Flexible and Armored Cables - Ideal for Mining Applications

Electrical Circuit Devices

Manufacturer:VELAN OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Branching boxes are designed for connection and branching of flexible and armoured cables, wires with copper and aluminium conductors at mining enterprises of ferrous and non-ferrous metallurgy. The environment is not explosive.

Specifications

Climatic version

?2,5;??2,5;?2,5

Nominal voltage

690 V

Rated current

200 A

Cross section of conductors of the cables to be supplied

6...70 mm²

Number of power clamps, earthing clamps

6 pcs

Diameter of cables to be fed

24...40 mm

Sheath material

Plastic

Overall dimensions (HxWxH)

425?430?130mm

Weight

9.2 kg

Explosion protection marking

PH2

Degree of protection against external influences

IP66

Number of cables to be connected

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
