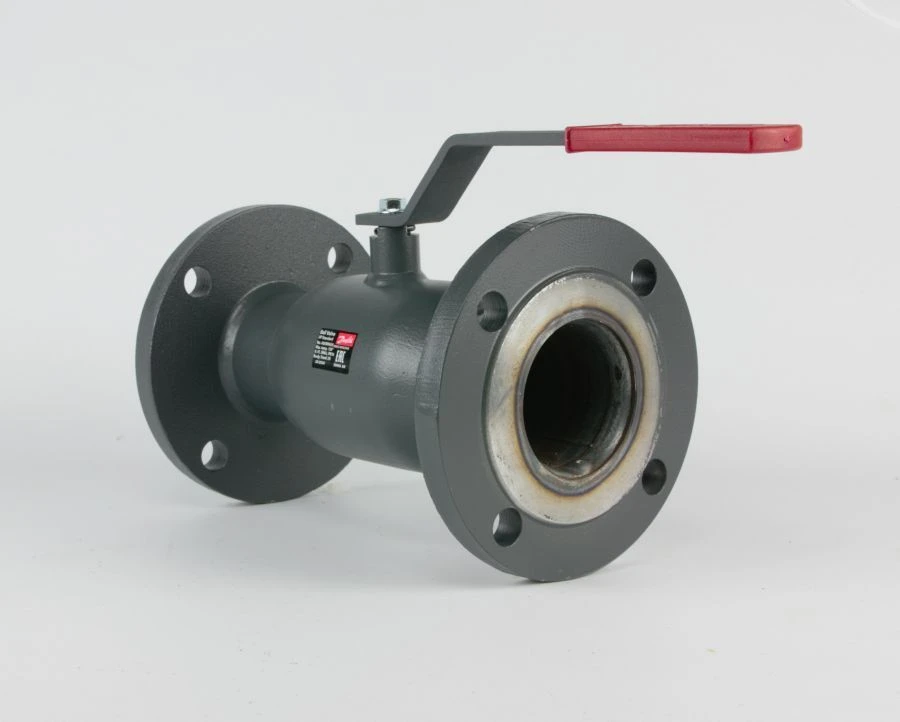

JiP Standard FF Ball Valve DN 20 - 50 for Heating and Industrial Installations

Ball Valves

Manufacturer: RIDAN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

JiP type ball valves are two-position shut-off valves designed for use in heating and industrial installations for liquid media. The tightness class is A according to GOST 9544. Steel ball valves of JiP type JiP Standard modification are mainly designed for water of external and internal heating networks at the temperature of the heat carrier from 0 to 150 ?C, including water in the circuits of heating networks in accordance with the requirements to the quality of network water according to "Rules of technical operation of electric power stations and networks of the Russian Federation" (PTE) paragraph 4.8.40.

The self-crimping design of the ball seal, which is a special spring with two rings made of fluoroplastic reinforced with carbon fibre, provides the necessary tightness of the valve and the optimum torque required to turn the ball. Connection to the pipeline is flanged, in accordance with GOST standards.

Specifications

Operating medium

water

Pressure

1.6 MPa

Climatic version

UHL 4

Material

carbon steel (for body)

nominal passage

stnadartnoprovodnyh passage

Shutter type

плавающий шар

Housing material

Carbon steel

Thread

Connection type

pipeline connection: flanged

Type of control

manual

Nominal pressure

1.6 MPa

Operating medium temperature

0 - 150 °C

Nominal diameter

20...50 mm

Joining

pipeline connection: flanged

Assignment

For heat supply systems

Drive pinion torque

in accordance with GOST 21345 with regard to turning torque

Steel grade

Steel 20 or steel p235gh or analogue (for body)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
