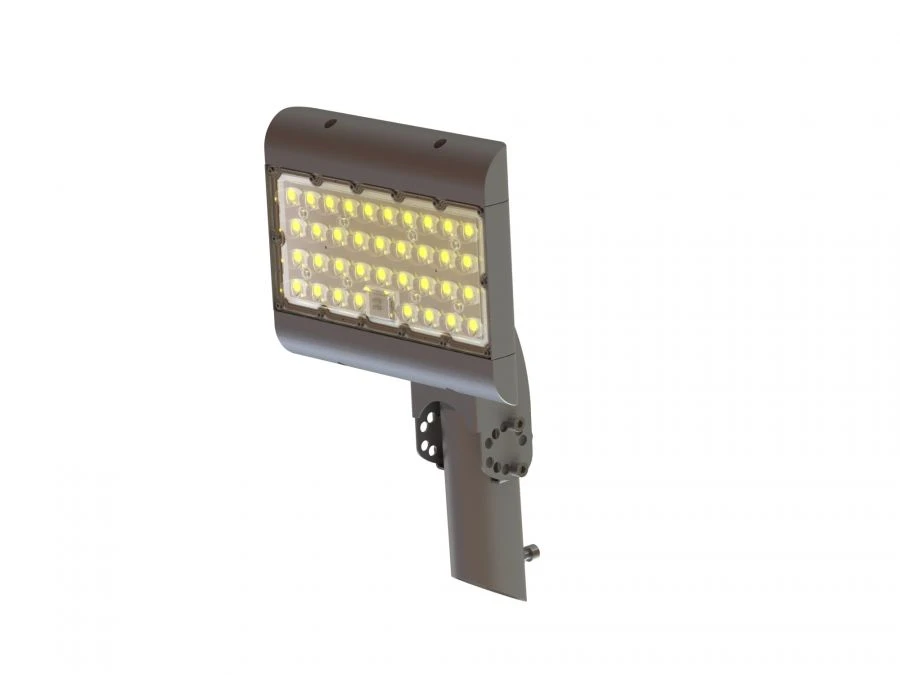

iStellar Mars 75 LED Outdoor Light R360 (151-81)

Available for Import

iStellar Mars 75 LED Outdoor Light for Effective Illumination

LED Spotlights and Luminaires

Manufacturer: LEDLIGHT ENGINEERING LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Luminaire iStellar Mars 50 40 (151-81) RAL9003 R360

Description

LED street luminaire. Overall size 535 x 257 x 130 Mars series has a wide body, which reduces the glare of each light point. The power is not more than 75W.

Incoming AC voltage range 140-280V (50Hz). Protection from 380V. Lightning protection.

Ripple less than 1%. Smooth start. Overheating protection.

Power factor not less than 0,97. Possibility to regulate the luminaire power to the lower side. Colour temperature 4000K, colour rendering index (CRI) not less than 80.

Luminous flux of the luminaire is not less than 11250 lm. Light intensity curve 151 degrees in cross-section (along the length of the luminaire): L, semi-wide. Light intensity curve 81 degrees in longitudinal section (along the width of the luminaire): G, deep.

Polymer powder coating UV-resistant according to RAL9003. Operating temperature of the luminaire -40 + 50 degrees Celsius. Warranty 5 years.

Operating resource 100 000 hours. Protection degree of the luminaire IP66. Feature (R360 in the name of the luminaire) is the possibility of re...

Specifications

Power

75 W

Luminous flux

11250 lm

Installation method

On 35 to 52 mm diameter pipe

Radiation color

neutral

Color temperature

4000 K

Assignment

Lighting of streets, roads, yards

Availability of solar panel

absent

Availability of motion sensor

absent

Housing material

Aluminum

Electrical safety class

Type of spotlight

flooding

Type of light distribution of the spotlight

L - semi-wide.

Scattering

uniform

Spotlight type

LED

Rated supply voltage

140...280 V

Type of supply current

Variable

Power factor

0.97

Color rendering index (Ra)

IK code

Operating temperature range

-40...50 °C

Light distribution class

Light intensity curve 151 degrees in cross section (along the length of the luminaire): L, semi-wide. Light intensity curve 81 degrees in longitudinal section (along the width of the luminaire): G, deep.

Pulsation factor

1 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
