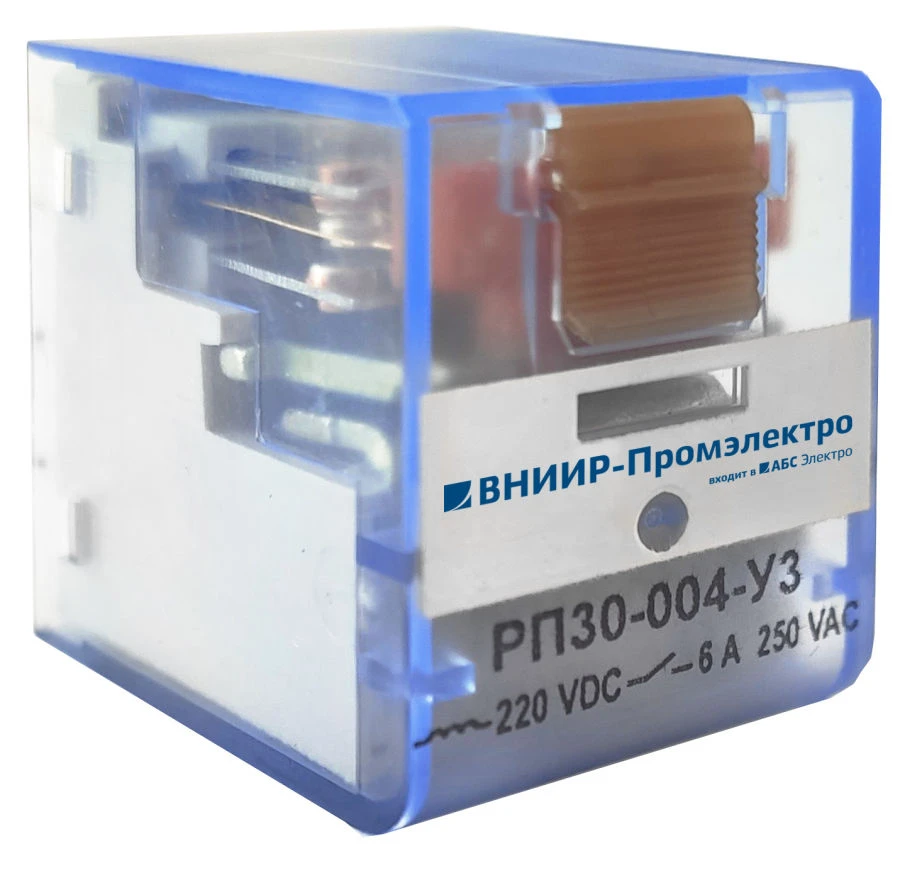

Intermediate Relay Series RP30 for Protection and Control

Available for Import

Intermediate Relay Series RP30 for Reliable Protection and Control Applications

Intermediate Control Relays

Manufacturer:VNIIP-PROMELECTRO LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Intermediate relays of RP30 series are designed for application in protection and control terminals of electrical installations as output organs, as well as in relay protection and emergency control schemes for switching electrical loads in circuits with voltage up to 264 V DC and AC of frequency 50 and 60 Hz and are component parts. They can be included in the product "Intermediate modular relays RP30 series" as a separate module. Conforms to technical conditions GLCI.647115.066 TU and requirements of ??

?? 004/2011 and 020/2011.

Specifications

Climatic version

U3, T3

Rated coil voltage, V

12 - 220 (DC); 12 - 380 (AC)

Rated coil current, A

0.01 - 1.0 (DC); 0.016 - 1.0 (AC)

U of operation (Ucp) in cold state, %Un, not more than

70 (DC); 80 (AC)

Return U, %Un, not less

10 (DC); 15 (AC)

Time of relay operation, ms, not more

With M30 module: 18 (DC)/20 (AC)

Power consumption of voltage windings, W/VA

0.9/1.8

Current winding power consumption, W/VA

0.8/1.8

Number and type of contacts "p" - switching "h" - closing "p" - opening "p" - disconnecting

2 × 2 "p" (RP30-002)

Rated contact current, A

6 A

Contact material

AgNi 90/10

Mechanical wear resistance, HE cycles, not less than

30 000 000 (DC); 20 000 000 (AC)

Service life, years

17 year

Maximum switching voltage

264 V

DIN rail mounting pad

P30 series receptacle

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
