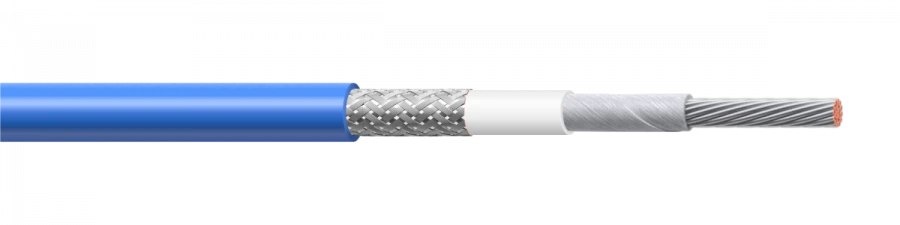

Installation Wires MGSHVEV with Combined Insulation for Versatile Applications
Manufacturer:
Podolsk Cable OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Wires with combined fibre or film, or polymer and polyvinylchloride insulation. Wires with combined fibre or film, polyvinyl chloride insulation are designed to work at operating AC voltage up to 380 V for cross sections of 0,08-0,14 mm2 and 1000 V frequency for cross sections of 0,2-1,5 mm2
frequency up to 10000 Hz and direct voltage up to 500 and 1500 V.
Service life is not less than 15 for combined fibre or film and polyvinylchloride insulation, at operation in the temperature range from minus 50 to +70°C..
frequency up to 10000 Hz and direct voltage up to 500 and 1500 V.
Service life is not less than 15 for combined fibre or film and polyvinylchloride insulation, at operation in the temperature range from minus 50 to +70°C..
Specifications
Core material
tinned copper stranded
Insulation material
two layers of silk and PVC plastic
External insulation
PVC plasticate
Screen
Braid made of tinned copper wires
Cladding
PVC plasticate
Climatic version
In accordance with GOST 15150-69
Application
The wires are designed for operation at operating AC voltage up to 380 V for cross sections 0,08-0,14 mm2 and 1000 V for cross sections 0,2-1,5 mm2 of frequency up to 10 000 Hz and DC voltage up to 500 and 1500 V respectively.
Execution
Quality category - VP
Number of cores
1
Section
0.12...0.35 mm²
