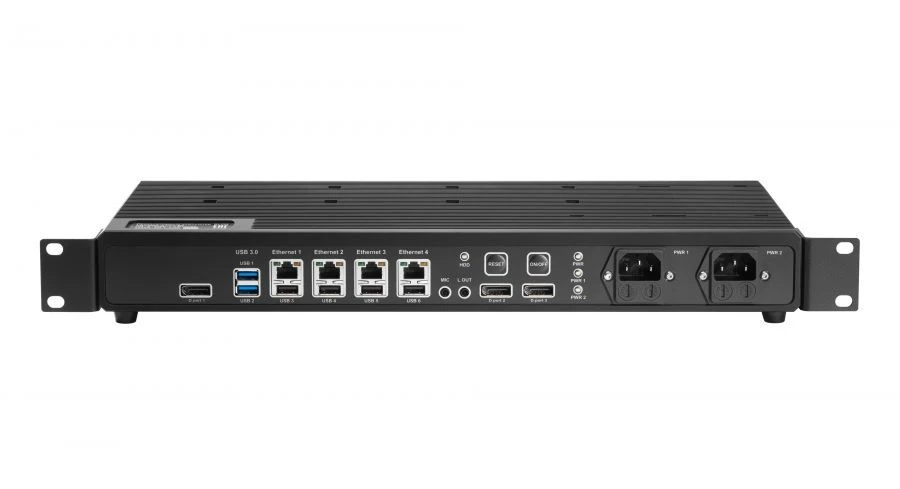

Industrial Fanless Computer BLOK - SWAP-C PREMIUM for Robust Industrial Applications

Versatile Computing Machines

Manufacturer: RTSOFT-VS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Russian fanless industrial computers in 19" BOXPC format of SWAP-C PREMIUM class. BLOK series computers are designed and manufactured in Russia under the import substitution programme with reliance on ultra-modern achievements in the field of microprocessor technology, network solutions, multimedia and disk interfaces, power supply systems and production of precise 3D-mechanics. BLOK computers are designed to create networked multi-screen silent operator and dispatcher workstations, servers, gateways and controllers for various purposes.

Specifications

RAM

8/16/32/64/96*/128* GB (*MOQ)

OS support

Astra Linux and other versions of Linux, Windows, QNX, LynxOS, VxWorks

Defense

IP50

Impact (work).

M41: 30 m/s2 (3 g) from 2 to 20 ms; 75 g (1-5 ms), 15 g (5-10 ms)

Vibration (operation)

M41: up to 20 m/s2 (2 g)/0.5 to 200 Hz; up to 5 g (1-500 Hz)

Crash test (operation)

50 g/11 ms, 10 g/0.5-500 Hz; 12 g/1-500 Hz

Cooling system

Conduction/ventilatorless

Storage temperature

-40 to +85 °C

Operating temperature

Standard: -10 to +50°C/extended: -40 to +70°C

Dimensions of the case, H x W x D (mm)

Blok Ultra 44 x 415 x 210/Blok XT 49 x 415 x 210

Weight (max.)

5 kg

Installation options

19" Rack, table, wall, DIN rail, vibration supports

Performances

industrial LKZhT.466259.012 TU/ Strengthened LKZhT.466259.023 TU

EMC/EMI

III execution group TC AC-JARO GOST R 32137-2013, ?? ?? 020/2011, class A

MTBF (h.)

from 50,000

Manufacturer's warranty

3 to 7 years old

I/O ports

6 x USB 3.0/2.0; 4 x 10/100/1000BASE-T, optional: 1 x 1G SFP SX/LX optics; 2 x RS232 (up to 115,200 kbaud, galvanically isolated), optional: 2 x RS422/485.

Additional features

Optimisation of architecture and price for a specific project; Change of input power characteristics (DC from 12 to 220 V); Improvement of mechanical and IP properties; Expansion of I/O capabilities

Power supply

AC/DC: 220V/50-400Hz, DC/DC: 9-36V, 18-75V (2xPSU)

Audio

1 x Mic, 1 x Line out

Video

3 x DisplayPort up to 4K (Video+Audio)

Type of storage

2 x 2.5" SSD or HDD SATA 6Gbps, optional: M.2 SSD, SATA 6Gbps, NVME* SSD PCIe (*MOQ)

Processor

1.8 to 4.4 GHz

Identification and authentication

DAC Module (optional)

Type

Промышленный компьютер

Expansion slots

2 Mini PCI Express/Wi-Fi ready slots; 1 SIM slot/GSM ready

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
