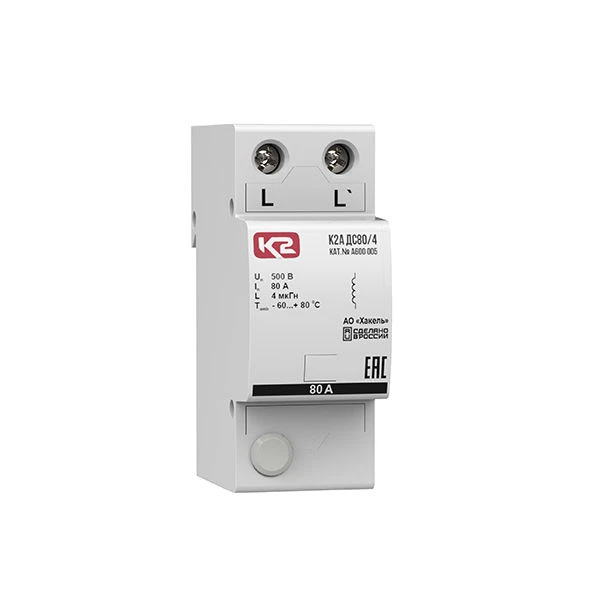

Impulse Isolation Choke K2A DS80/4 for Surge Protection Applications
Manufacturer:
HAKEL OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The K2A DC80/4 pulse isolating choke is designed to coordinate the operation of Test Class I and Test Class II (or Test Class II and Test Class III) varistor-based ultrasonic devices when the distance between them on the power supply cable is less than 10 metres.
Specifications
Current type
DC/variable, 50 Hz
Rated current
80 A
Weight
350 year
Inductance
4 µHn
Overall dimensions (HxWxH), mm
92x36x66
Rated mains voltage
500 V
Operating temperature
-60...80 °C
Mounting
DIN rail 35 mm
