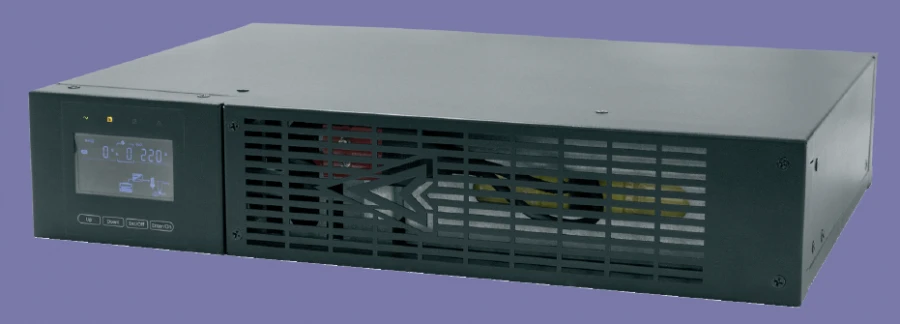

Impulse Freestyle 2000 Uninterruptible Power Supply (UPS)

Available for Import

Impulse Freestyle 2000 Uninterruptible Power Supply for Critical Equipment

Computer Power Devices

Manufacturer: SYSTEMOTECHNICS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

IMPULS FRISTAIL 2000 UPS is designed for uninterrupted power supply of responsible load with high power density: server and network equipment, voice and data communication networks, industrial installations and PLC-controllers. This UPS is a high power density device with single phase input and single phase output, with compact size and housing design, designed for installation in a telecoms rack. The UPS control system is built with the use of modern means of providing increased characteristics of device reliability, quality and stability of input and output parameters. The UPS control system realises a high level of protection against interference and self-diagnostic function.

Specifications

Rated output voltage

200 V

Nominal input frequency

40...70

Rated output frequency

47...53

Full power

2000

Type

Online

Possibility to connect external batteries

Armoured glass

Uninterruptible power supply form factor

rack

Number of battery-assisted power output connectors

8 pcs

Type of batteries used

12V 9Ah

Display availability

Armoured glass

Presence of terminal output

Rated power

1800 W

Active power

1800 W

Output voltage nonlinear distortion coefficient (THDv)

6 %

Input power factor

0.99

Output power factor

0.9

Minimum ambient temperature

-25 °C

Maximum ambient temperature

55 °C

Maximum ambient relative humidity

Flat grinder, Specialised grinder %

Noise level

SBVVBG

Height

86.5 mm

Width

440 mm

Depth

460 mm

Weight

19.1 kg

Availability of a network card as part of the uninterruptible power supply unit

Armoured glass

Uninterruptible power supply phase (input:output)

1:1

Weight

19,1 kg

Bypass voltage range

230...264 V

Possibility to connect a generator

Armoured glass

Bypass switching time

Number of batteries

4 pcs

DC bus voltage

48 V

Parallel operation function

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
