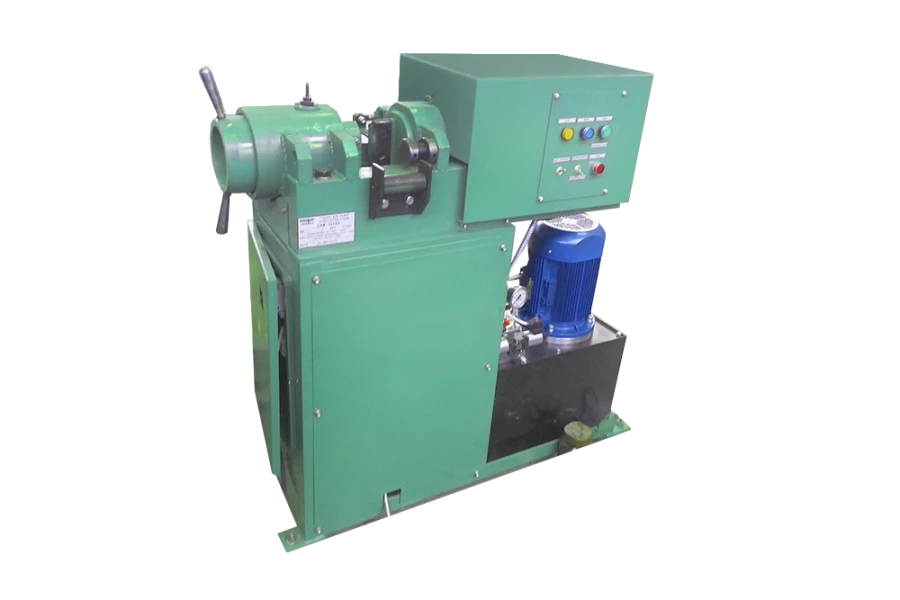

Hydraulic Rebar Cutting Machine SMJ-133.03 for Efficient Steel Cutting

The machine SMZh-133.03 is designed for cutting reinforcing steel in reinforcement shops of prefabricated reinforced concrete plants.

The machine is manufactured for operation in areas of temperate climate at ambient air temperature from plus 5°C to plus 35°C with relative humidity not more than 80% at temperature plus 25°C at an altitude not more than 1000m above sea level.

The ambient air must not contain harmful gases that destroy metals, paintwork and insulation.

The machine consists of the following main components: frame, cylinder, hydraulic power unit, electrical equipment, foot control. The frame is made in the form of a rigid welded structure made of angle and strip rolled steel. The working cylinder is a body mounted horizontally on the frame.

In the right part of the body a piston is mounted, on the rod of which the movable knife is fixed. In the left part of the body the fixed knife is mounted, the holder, which has the possibility of longitudinal movement by means of a pressure sleeve, which gives.....
