Hydraulic Cylinder CG-80 50x245 for Efficient Industrial Applications

Hydraulic Cylinders

Manufacturer: OGM Plant LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

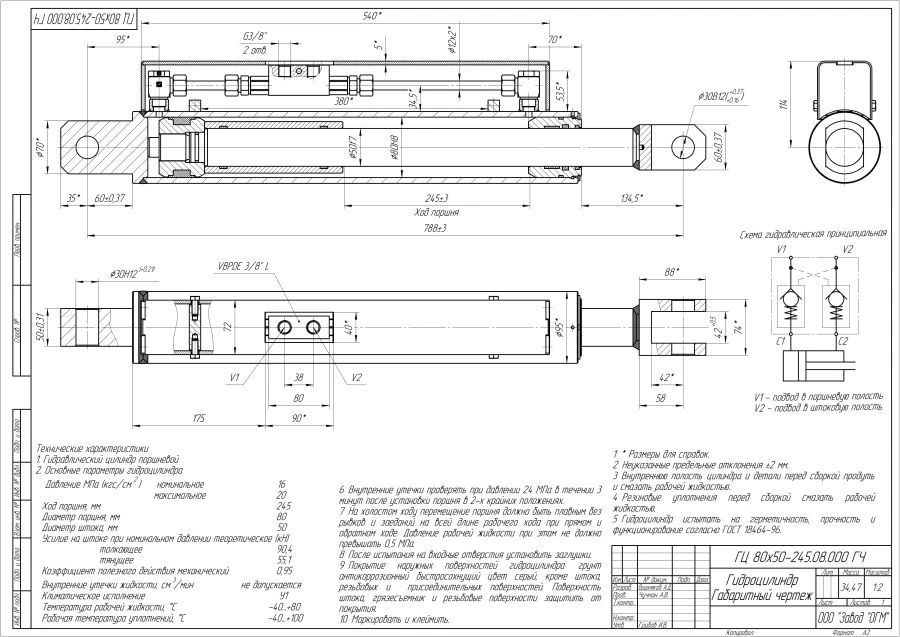

Technical characteristics 1. Hydraulic cylinder piston 2. Main parameters of the hydraulic cylinder Pressure MPa (kgf/cm )nominal 16 maximum 20 Stroke of the piston, mm 245 Diameter of the piston, mm 80 Diameter of the rod, mm 50 Force on the rod at nominal pressure theoretical (kN) pushing 90,4 pulling 55, Coefficient of efficiency mechanical 0,95 Internal leakage of liquid, cm/min is not allowed Climatic design U1 Temperature of the working fluid, C -40.

...+80 Working temperature of seals, C -40.......+80 Working temperature of seals,? -40...+100.

Specifications

Pressure

16...20 MPa

Hydraulic cylinder stroke

245 mm

Sleeve diameter

80 mm

Stem diameter

SBVVBG mm
