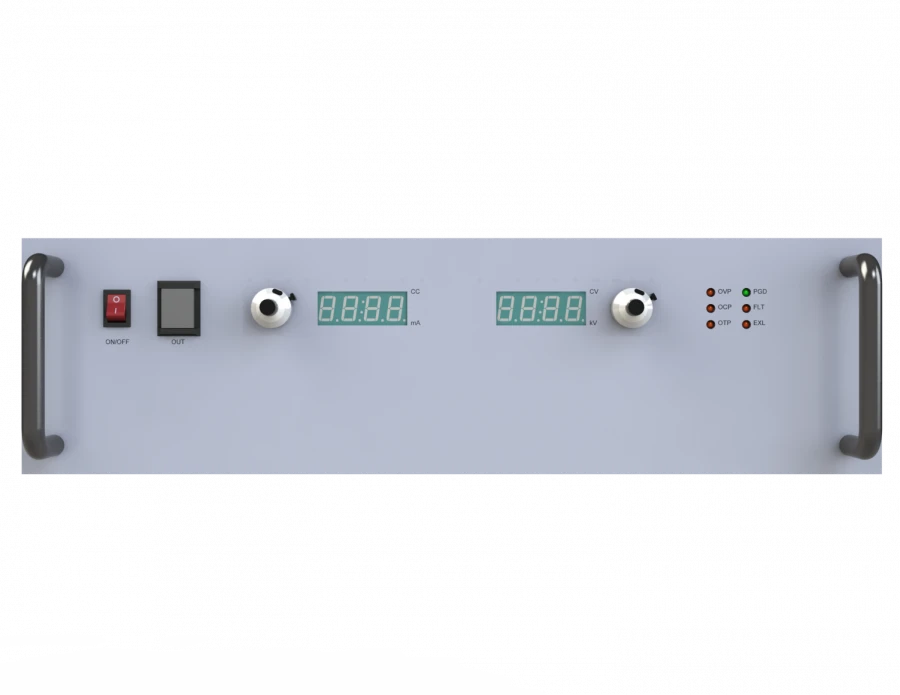

High Voltage Power Supply SHVHP Series for Rack Mount Applications

Static Power Converters

Manufacturer: PARAMERUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The SHVHP-4 series of high-voltage power supplies for server rack mounting includes 14 models with positive or negative polarity with output voltage from 1 kV to 150 kV with power up to 6 kW. All models are equipped with a set of protections with adjustable thresholds and support three modes of operation: current, voltage and power regulation, which allows to use these devices to solve a wide range of industrial and research tasks.

FEATURES
Input power protection
Overload and short circuit protection
Over/under output voltage protection
Arc fault protection
Active power factor correction with 99% efficiency
Analogue interface with opto-coupling (DA-15)
Analogue interface compatible with Spellman interface (JBI STR 50)
Support for RS-232, RS-485, USB, GPIB, Ethernet digital interfaces
Intuitive user software
Production, support and service - RF

Specifications

Digital control interfaces

RS-232; RS-485; USB; GPIB; Ethernet

Setting the output voltage/current

Multi-turn potentiometer on the front panel

Safeguards

By input power supply, undervoltage and overvoltage, output current exceeded, output power exceeded, output short circuit, output arc discharge, operating temperature exceeded

Instability of output current

0.05 %

Output current setting accuracy

0.05 %

Instability of output voltage when load changes

0.05 %

Instability of output voltage when input voltage changes

0.01 %

Output voltage setting accuracy

0.05 %

Output voltage adjustment

0 to Vout max

Polarity

Positive, Negative or Customizable

Power supply voltage

195...245 V

Output power

2000...6000 W

Maximum output voltage

500...150000 V

Output voltage ripple

0.1 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
