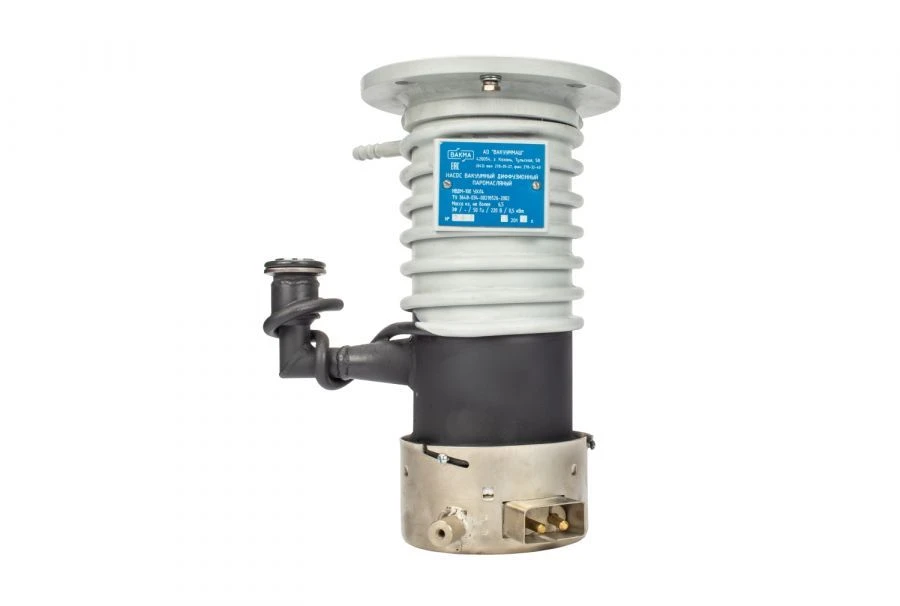

High Vacuum Diffusion Pump NVDM-100 for Air and Gas Extraction Applications

Specialised Vacuum Pumps

Manufacturer:VACUUMASH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Diffusion high-vacuum pump NVDM-100 is designed for pumping out of hermetic volumes of air, gases, vapours and vapour-gas mixtures, non-aggressive to materials of construction and working fluid of the pump and not containing dripping moisture and mechanical contaminants. Diffusion high-vacuum pump NVDM-100 is used together with forevacuum pumps, the speed of action of the forevacuum pump is not less than 7.2m3/h. Type of climatic execution UHL4 and O4, pumps are not intended for use in fire-explosive production.

Specifications

Working fluid grade (oil)

VAKMA OIL 500

Overall dimensions (in/out/n), mm, not more

320/250/170 mm

Pump weight, kg, not more

6.5 kg

Working fluid level, mm, max

11 mm

Working fluid level, mm, min

7 mm

Working fluid fill volume, l

0.07 l

Cooling water flow rate, l/h

35 (+5) l/h

Power consumption at rated voltage 220V, W

500 (+30/-10) W

Ultimate residual pressure, Pa, not more, at ambient temperature: from +25 0C to +45 0C inclusive.

6,6?10 -4

Ultimate residual pressure, Pa, not more, at ambient temperature: from +10 0C to +25 0C inclusive.

6,6?10 -5

Highest discharge pressure, Pa, not less than

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording

Rapidity of the forevacuum pump at a pressure of 60 Pa (0.45 mmHg) in the outlet section of the diffusion pump, m3/h, n

7.2

Rapid action in the range of operating pressures: from 6.6x10 -4 to 1.3x10 -1 Pa, l/sec.

340 (+/-40)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
