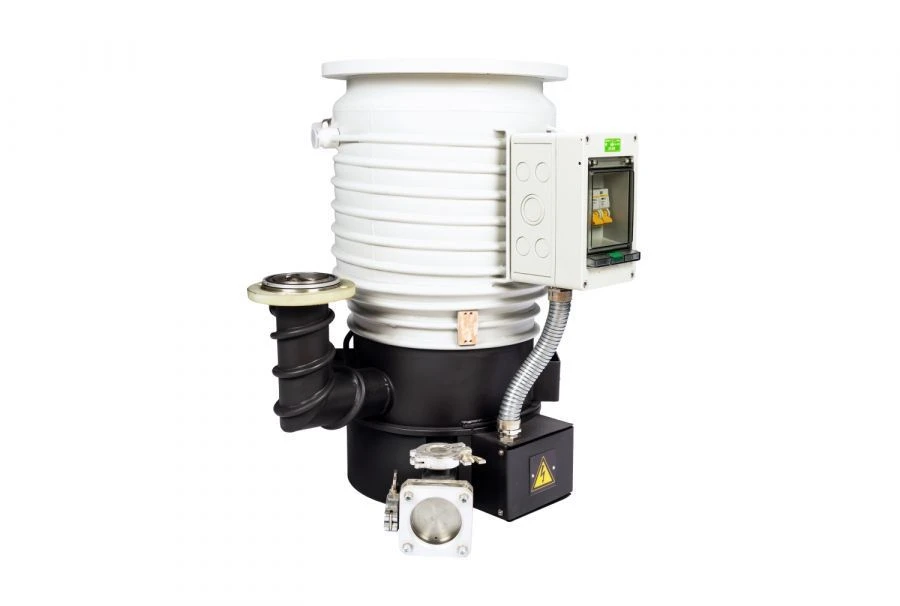

High Vacuum Diffusion Pump ND-250 for Efficient Air and Gas Extraction

Specialised Vacuum Pumps

Manufacturer:VACUUMASH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Diffusion high-vacuum pump ND-250P

Description

Diffusion high-vacuum pump ND-250 is designed for pumping out of hermetic volumes of air, gases, vapours and vapour-gas mixtures which are not aggressive to materials of construction and working fluid and do not contain dripping moisture and mechanical contaminants. The ND-250 diffusion high-vacuum pump is used in conjunction with a forevacuum pump, the speed of action of the forevacuum pump is not less than 40 m3/h. Type of climatic execution UHL4, the pump is not intended for operation in fire-explosive production. Flange type ISO-K

Specifications

Cooling water flow rate, l/h, per oil deflector

20 l/h

Cooling water flow rate, l/h, per housing

160 l/h

Working fluid grade (oil)

VAKMA OIL 500

Working fluid quantity, l, min

2 l

Overall dimensions (in/out/n), mm, not more

560/470/420 mm

Macca, kg, not more

28 kg

Working fluid quantity, l, max

2.4 l

Power consumption, kW

2.4 kW

Supply voltage, V

220 V

Ultimate residual pressure at ambient air temperature from +10 0C to +35 0C, Pa, not more than

3 ? 10 -4

Highest discharge pressure, Pa, not less than

26.6

Fast action of forevacuum pumps at a pressure of 26 Pa (0.2 mm Hg) in the outlet section should be, m3/h, not less than

Rapidity of action on air at pressure 1x10 -1 Pa, l/s, not less than

2700 l/s

Rapidity of action on air at pressure 1x10 -1 Pa, l/s, not less than

1500 hp

Rapidity of action on air at pressure of 1 Pa, l/s, not less than

225 l/s

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
