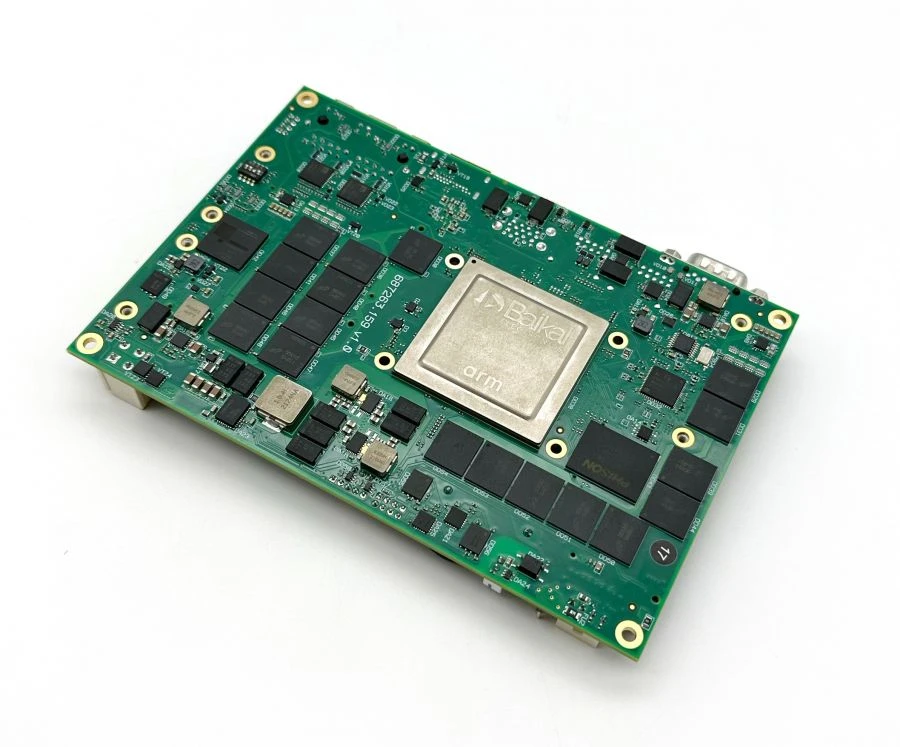

High-Performance 3.5” Processor Module CPC1401 for Embedded Applications

Advanced Computing Devices

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is a 3.5" format processor module on the domestic Baikal-M processor, designed for embedded applications requiring high performance and low power consumption.

Specifications

Processor

Baikal-M (BE M1000)

RAM

DDR4-2400 SDRAM with ECC; Soldered; 1 channel; Up to 16GB total capacity.

Built-in eMMC Flash drive

16GB

Video output

1 Display Port; 1 LVDS port

Flash memory for Loader

16 MB SPI-Flash

MiniPCI Express expansion module connectors

2 full-size connectors; Support PCI Express Rev. 2.0

Support the possibility of SIM card connection when installing GSM modem in MiniPCI Expre expansion module connectors

Armoured glass

SATA III interface

2 ports; Transfer rate up to 6 Gbps

M.2 NVME Disk Connector

Key M connector; Supports sizes 2242, 2280

1Gbit Ethernet interface

Two ports; Support 10/100/1000 Mbps modes

RS232 interface

1 port on standard D-Sub type connector; 1 port on expansion connector

USB interface

Support USB 1.1 (12Mbps), USB 2.0 (480Mbps), USB 3.0 (5Gbps); 2 USB 3.0 Type A ports; 2 USB 2.0 ports are on MiniPCI Express connectors; 2 USB 2.0 ports are on expansion slot.

Connector for fan connection

4-pin connector; Power supply voltage selectable

FRAM memory

8 Kbytes for user data storage

Real Time Clock

Opto-isolated external reset input

Insulation breakdown voltage: 500 V

Operating temperature range

Minus 40 ºC to plus 85 ºC

Power supply voltage

+12 ?

Consumption current

Not more than 8 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
