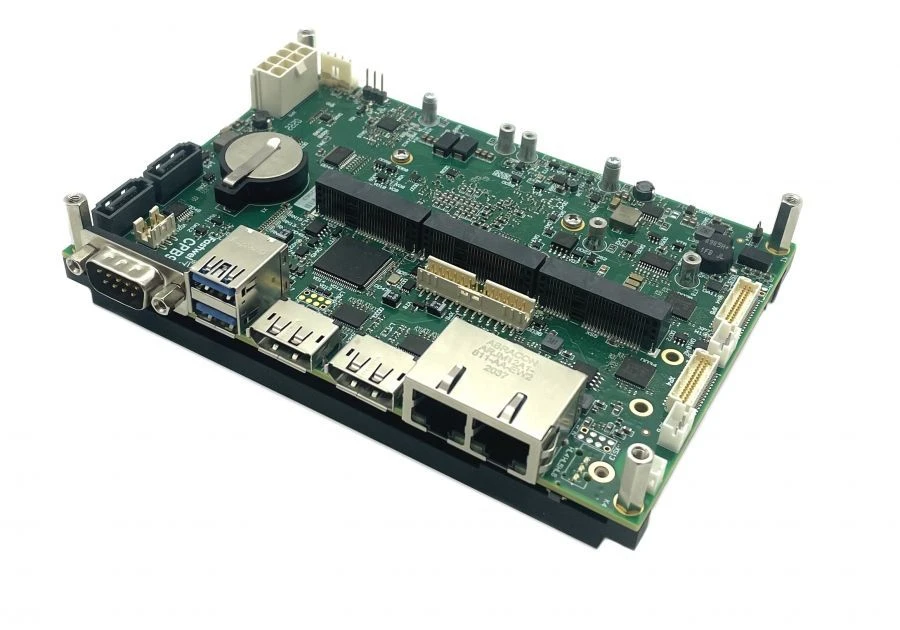

High-Performance 3.5" Processor Module CPB910-01 for Embedded Applications

Mounted Circuit Boards

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is a 3.5" processor module designed for embedded applications requiring high performance and low power consumption. The module contains: two Ethernet channels, 6 USB ports, two Serial ATA ports, one serial port, two Displayport channels, one or two LVDS channels (depending on the version). The module functionality can be extended by connecting additional modules of Mini PCI Express format. The module is supplied with installed operating system (hereinafter referred to as OS) FreeDOS and is compatible with OS: Windows 10, Linux.

Specifications

Software compatibility with OS

FreeDOS; Windows 10; Linux

Consumption current

3,2 ?

Power supply voltage

+12 ?

Operating temperature range

From minus 40 C to plus 85 C

Hardware monitor

Power supply voltage monitoring; CPU, PCB temperature monitoring

Audio Support

HD Audio digital interface output on mezzanine connector; Supports Audio output via DisplayPort connectors

Real Time Clock

FRAM memory

4 Kbytes for storing user data

COM1 port

RS232 port; Speed up to 230 kbps; 4 lines (TX, RX, RTS, DTR)

USB interface

Support USB 1.1 (12Mbps), USB 2.0 (480Mbps), USB 3.0 (5Gbps); Two USB 3.0 Type A ports; 3 USB 2.0 ports are on MiniPCI Express connectors.

Ethernet 10/100/1000/2500 Mbit

Two controllers

M.2 NVME Disk Connector

Key M connector; Supports sizes 2242, 2260, 2280

SATA III interface

Two interfaces; Transmission speed up to 6 Gbps

MiniPCI Express connectors

3 Connectors; Support PCI Express Rev. 2.0; Support USB 2.0; Support GSM modems with SIM card connection (2 connectors)

FLASH BIOS

8 MB SPI-Flash

LPC bus

Outputted to interface expansion connector; Conforms to v.1.1 specification

Video output

2 Display Port (up to 4K resolution); 2 LVDS ports, resolution up to 1920x1200 pixels, 60 Hz, 18/24 bits

RAM

DDR4 (2400) SDRAM with ECC support, soldered: 16 GB 2 channels

Processor

AMD Ryzen Embedded V1404I

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
