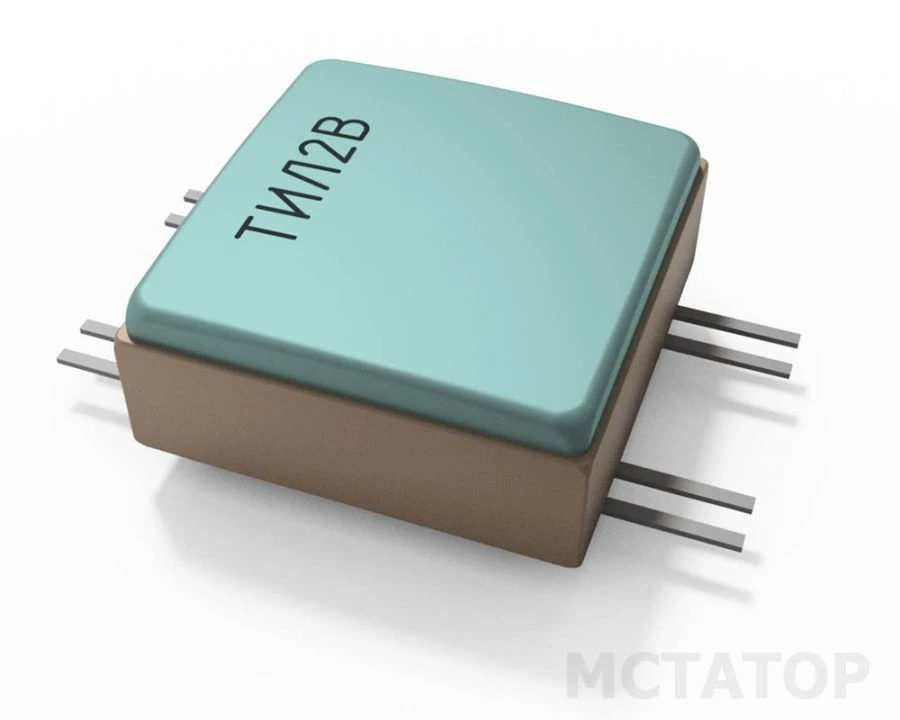

High Impedance Linear Pulse Transformers TIL2B for Galvanic Isolation Applications

Electric Transformers

Manufacturer:PJSC "MSTATOR"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Transformers pulse linear type TIL2B with high impedance value of linear winding are designed for galvanic isolation of subscribers with multiplex channel of information exchange (GOST R 52070, GOST 26765.52, MIL-STD-1553B).
Quality category "VP" and "OS".

Specifications

Number of windings of each transformer

4 pcs

Transformation ratio

Symmetry of generator windings

1.5 %

Product of pulse duration by input pulse voltage

45(×10^-6)

Input resistance (impedance) at F=1MHz, not less than

8(×10^3) ohm

Insulation resistance (voltage 100V), not less than

500 (×10^6) ohm

Primary winding inductance (leads 1-2), not less than

8.0(×10^-3)

Decay of the flat part of the pulse at the output, not more than

10 %

Electrical insulation strength: DC voltage

250 V
