High-frequency cable FUTP Cat 5e ZH ngA-HF 50pr 24 AWG

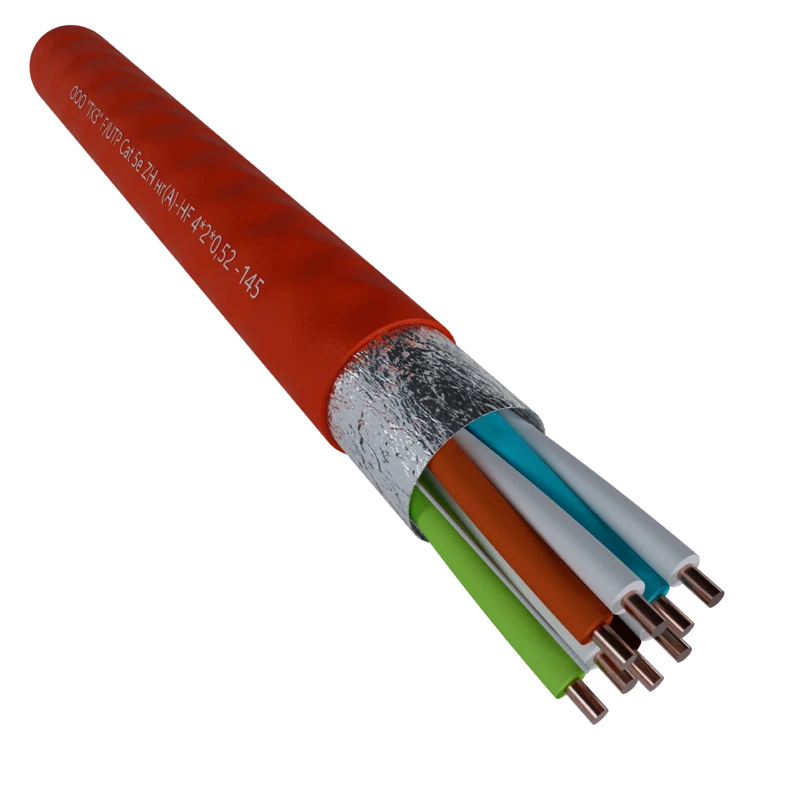

Design: Cores from copper wire with PE insulation, twisted in pairs with steps, not equal and not multiples of each other.Pairs are twisted in a core by unidirectional twisting.It is allowed over the core overlapping belt insulation from PET tape.On top of the core overlapped screen from aluminopolymer tape with a contact conductor from tinned copper wire with a diameter of 0,4mm. The screen is covered with a sheath made of halogen-free polymer composition. Scope of application: The cable is designed for horizontal and vertical laying, taking into account the volume of combustible load of cables, in buildings with mass stay of people, including multifunctional buildings, where it is required to use low-smoke cables that do not propagate combustion in group laying category A and do not contain halogens according to GOST 31565-2012, for operation in the range up to 100 MHz (category 5 and 5e according to GOST R 54429-2011) and ISO / IEC 11801.

Climatic execution U, category of placement 3,4 according to GOST 15150.
