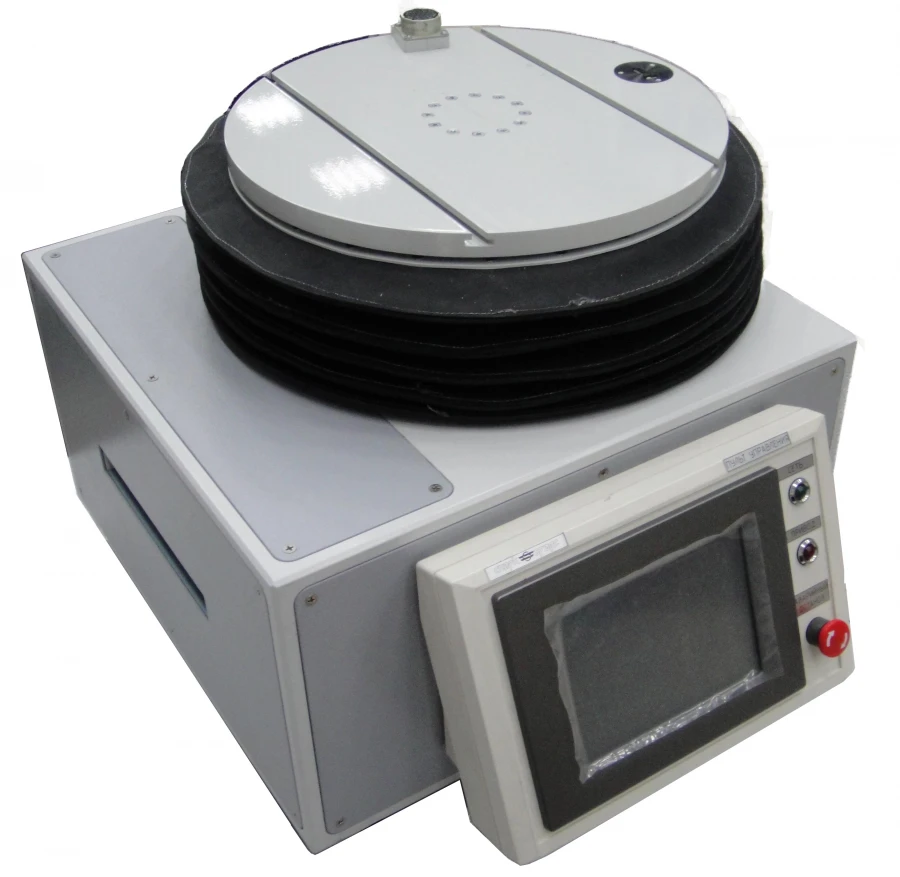

Gyroscopic Instruments Verification and Testing Device UPG-8 SPAN.402111.001 for Accurate Measurements

The UPG-8 gyroscopic devices checking and testing unit is designed for checking and testing gyroscopic devices and provides their longitudinal and transverse tilt angles, rotation and rocking. UPG-8 is used for checking of air horizons (AGB-3K, AGB-96, AGR-74, AGK-77, AGR-29, AGR-81, AGK-83), angular velocity sensors (DUS-1209), correction switches (VK-53, VK-90), electric direction indicators (EUP-53), gyro unit (GA-6) and others. Technical means of the UPG-8 operate under the control of system and application software installed on the control panel. The user interface allows controlling the inspection process (creating the necessary conditions for performing inspections) and monitoring the status of UPG-8. The UPG-8 hardware provides positioning of the device under test by means of the test platform. The test platform changes its angular position relative to a fixed, horizontally positioned base.
