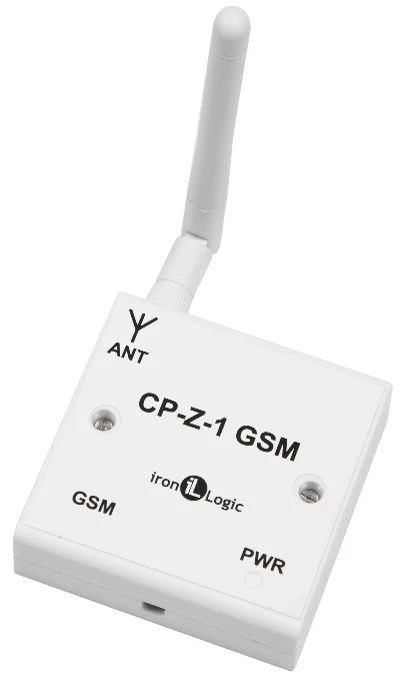

GSM Reader for Access Control Systems – Model CP-Z-1

Designed for use in access control and management systems (ACS) using GSM standard cellular communication and allows the incoming call phone number to be used as an identifier for access control. In addition, incoming SMS messages can also be a source of identifier. The received identifier in the form of a certain code sequence can be further transmitted:1.

To the controller via iButton (Dallas Touch Memory) or Wiegand protocols.2.In a personal computer (PC) via RS-485 interface.Features of the reader:- the possibility of identifying the phone number during a call and when receiving SMS-messages;- setting the parameters of the reader via SMS-messages;- the RS-485 interface allows you to connect the reader to a computer, and both receiving codes from the reader and setting the parameters of the reader are possible;- the connector for connecting the GSM antenna allows you to increase the level of reception of the network signal by connecting a remote antenna.
