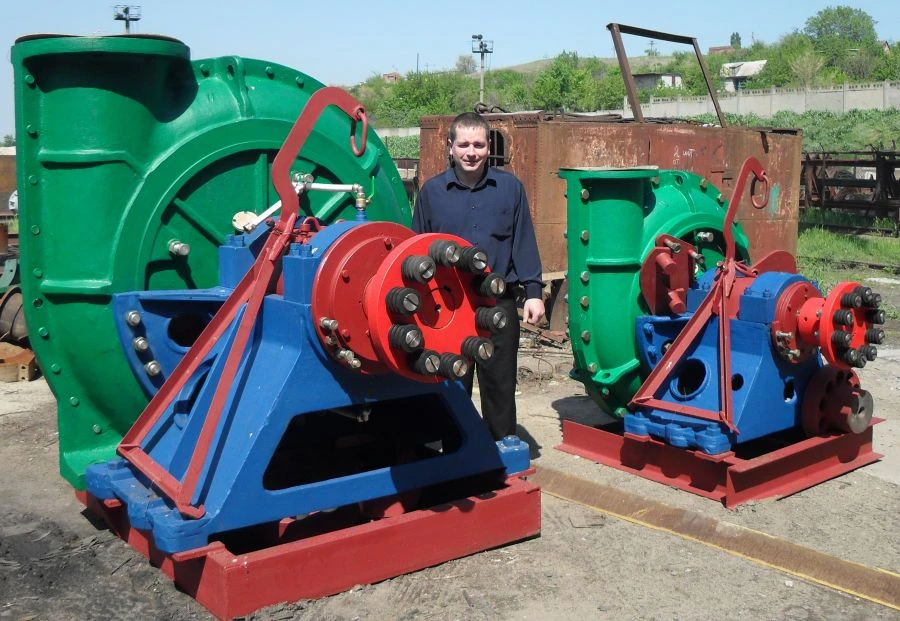

Ground Pump GrUT 2000/63 Model C400.00.00 SB for Efficient Water Transfer

Ground pump 2000/63 with delivery 2000 m 3/h (555 l/s) and head 63 m, double-casing, horizontal, is designed for pumping hydraulic mixture with hydrogen pH from 6 to 8, density up to 1400 kg/m 3, temperature 278 - 343 K (5 - 70 Å C), with solid inclusions of volume concentration up to 15%, microhardness up to 9000 MPa, and can be operated on floating suction dredgers, floating mobile and stationary suction stations. The pump is configured with the discharge connection pointing vertically upwards (other arrangements are possible in agreement with the customer). Direction of rotation is right-handed (clockwise, to be determined by the customer). Supply Q, m 3/h (l/s) - 2000 (555) Head H, m±6% - 63 Rotational speed n, rpm (S -1 ) - 590 (9,83) Efficiency factor, % not less than - 68 Pump drive power, kVT, not less - 630 Size of flow path cross-section, mm not less than - 210 Pump weight, kg not more than - 8300 Working wheel diameter, mm - 1030
