Available for Import

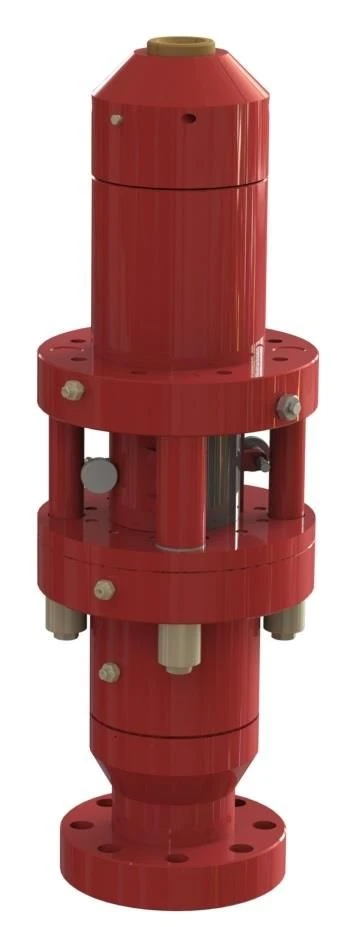

GDBT2-100x70-01-K2 Sealer for Long Pipe and Cable Systems
Manufacturer:
TSI LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
GDBT2-100x70-01-K2 sealer is designed for use as a part of a unit with a metal longitudinal coupless pipe or with a hose cable (polymer reinforced pipe), as a part of a set of devices for running and lifting longitudinal coupless pipes under pressure (as a part of coiled tubing units), in the process of development or repair of oil, gas, gas condensate wells.
Specifications
Weight
593 kg
Diameter
385 mm
Height
1330 mm
Test pressure of the hydraulic system
25 MPa
Working pressure in the hydraulic system
10 MPa
Number of sealing chambers
2 pcs
Maximum diameter of descending equipment and couplings on pipe
100 mm
Actual diameter of the through-hole for equipment and couplings to be lowered on the pipe
103 mm
Test pressure
105 MPa
Working pressure for sealing the pipe with the wellhead
70 MPa
Nominal bore diameter
100 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
