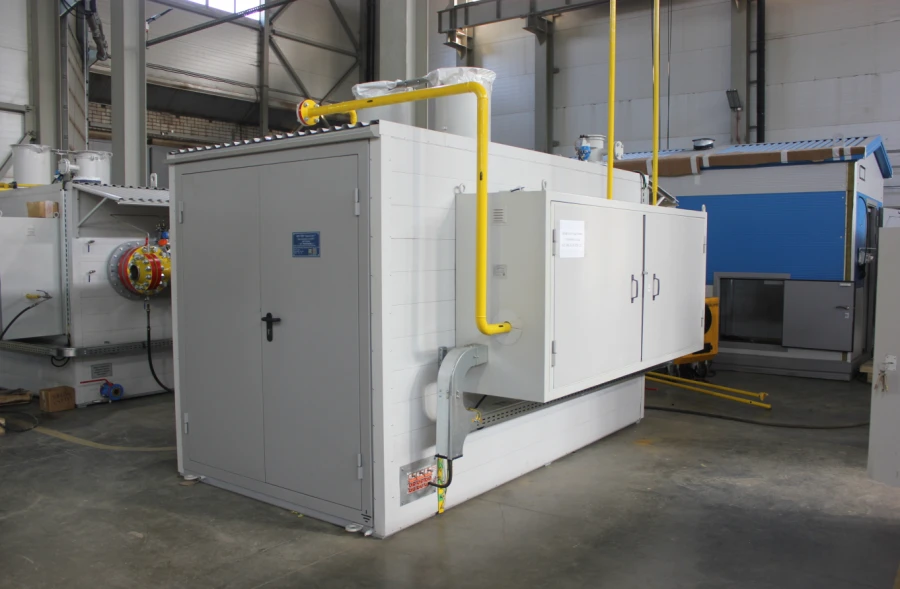

Gas Heating Unit (BPG) "ISTOK" for Gas Distribution Stations

Thermal Processing Units

Manufacturer: AVIAGAZ-SOYUZ+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

ISTOK gas heating unit (GHU) is designed for operation at gas distribution stations of PJSC Gazprom, in other technological systems of oil and gas industry and at enterprises of other industries. To ensure the required performance of the heated gas flow rate above the nominal capacity of the GPU "ISTOK" is allowed to use a bypass gas mixing line together with the GPU. To ensure the required thermal capacity above the nominal thermal capacity of the ISTOK GPU, it is allowed to combine several standard ISTOK Gas Heating Units (GHU) into a single ISTOK GPU Module. Gas Heating Unit (GHU) "ISTOK" refers to gas heaters with intermediate coolant, operating on low-light technology without the constant presence of service personnel.

Specifications

Rated heat output

100...800 kW

Working pressure of heated gas at heater inlet, not more than

10 MPa

Nominal flow rate of heated gas

5000-60000 nm³/h

Gas temperature at the inlet to the preheater

-20...30 °C

Fuel gas pressure upstream of the burner device

1.5...11

Nominal flow rate of fuel gas, max.

11-88 nm³/h

Degree of gas heating maximum, ?t

30...40 °C

Efficiency at rated mode, not less than

Flat grinder, Specialised grinder %

Maximum operating pressure of the heating medium

0.3 MPa

Temperature of the heat transfer medium at the outlet of the heat generator

95 °C

Температура теплоносителя на входе в теплогенератор

60...75 °C

Temperature of exhaust flue gases, not less than

120 °C

Noise level at a distance of 1 metre from the GPU, not more

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
