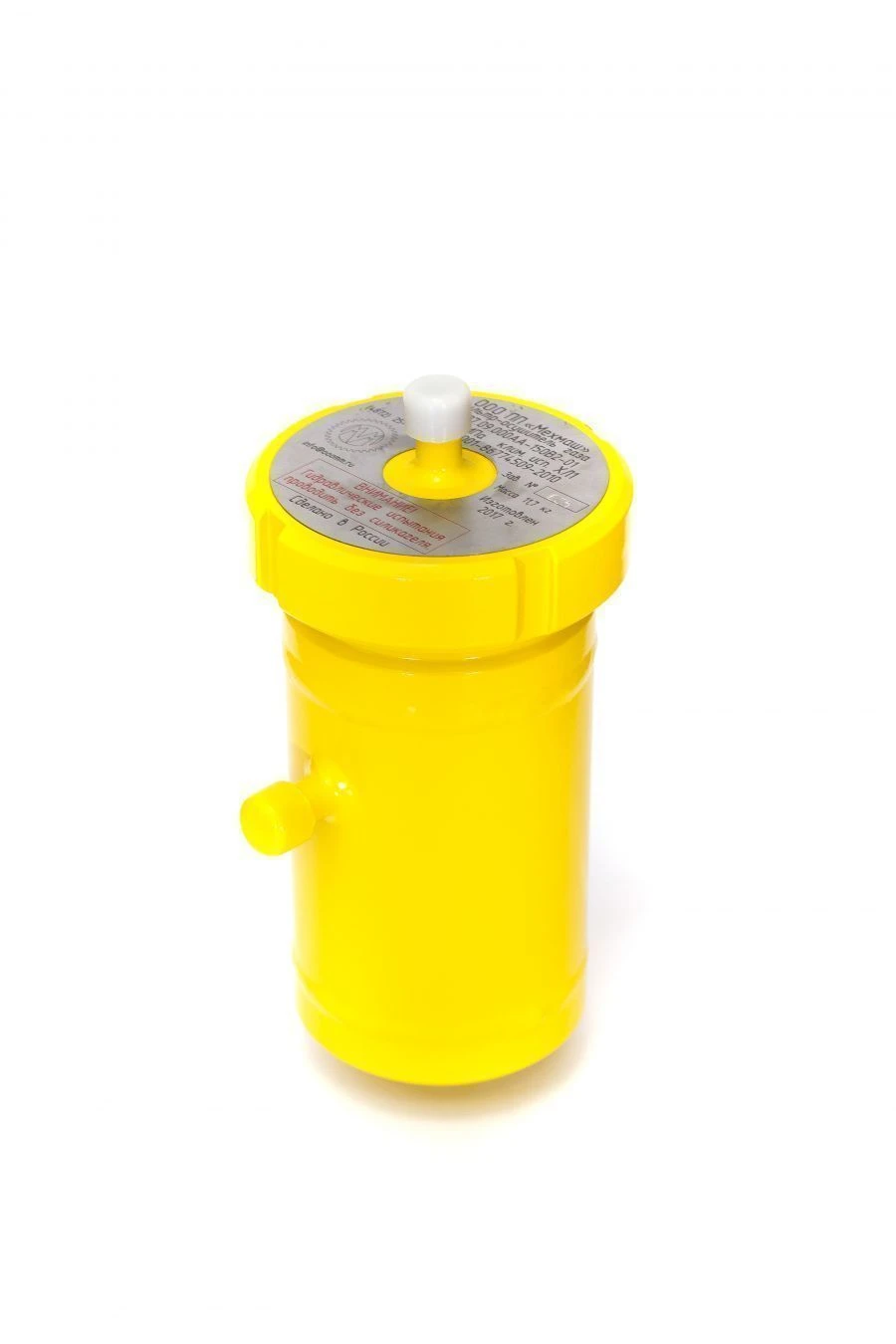

Gas filter-drier of MC 07.09.000AA type is designed for moisture drying and cleaning from mechanical impurities of pulse (control) gas supplied to the control unit of pneumatic and pneumohydraulic actuators of ball valves DN 50-1400 mm PN up to 16.0 MPa, installed on main gas pipelines, gas distribution stations, gas regulator stations. The valves are manufactured in climatic versions U1 (ambient temperature from -40 °? to +50 °?) and XL1 (ambient temperature from -60 °? to +40 °?) according to GOST 15150.
Operating environment temperature from -40 °? to +80 °? for U1 version and from -60 °? to +80 °?
for XL1 version. Possible places of installation of the gas filter-drier - separately on the rack or bracket (outside the ball valve) and directly on the ball valve. On request, it is possible to produce a filter-drier of gas under welding to the pipeline Ø 14×2 mm, 14×3 mm, 20×3 mm, 22×4 mm, 25×3 mm, 28×4 mm, etc., as well as with another type of connection.
