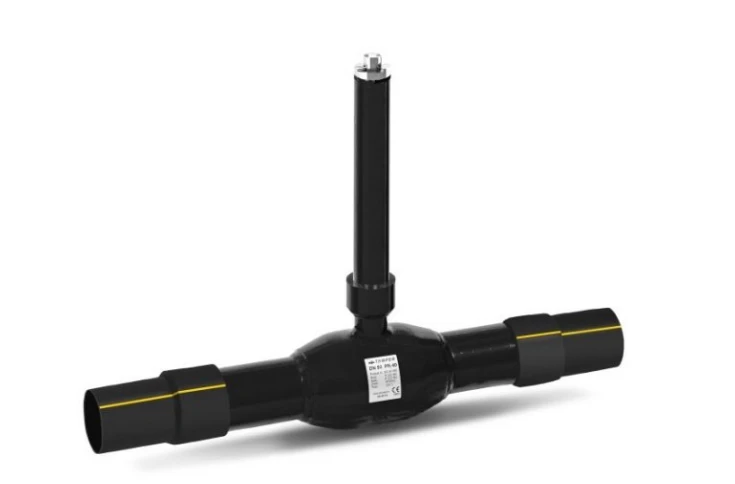

Full-Bore Ball Valve with Extended Stem for PE Pipe: Model 59220300

Ball Valves

Manufacturer: TEMPER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220250. Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220040. Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220050. Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220400. Standard bore ball valve 582 with extended stem with transition to PE sockets for ductless installation, welded, 582200

Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220250. Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless installation welded, 582201 Full bore 592 ball valve with elongated stem with transition to PE sockets for ductless installation, welded, 59220032. Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless installation welded, 582201 Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless laying welded, 582203 Full bore 592 ball valve with extended stem with transition to PE sockets for ductless laying welded, 59220040

Description

Connection type:

welded/welded

Working Environment:

Natural gas, liquefied petroleum gas and other gaseous media not aggressive to the materials of the valve components.

Specifications

Airtightness class

Class "A" GOST 9544-2015

Diameter

300 mm

Nominal pressure

25 MPa

Construction length

2750 mm

Connection type

with PE tubing

Aisle

complete

Flange for mounting the actuator

without flange

Execution

underground

Minimum temperature, up to

-40 °C

Maximum temperature, up to

200 °C

Service life, at least

Warranty period

3 year

Warranty period, cycles

10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
