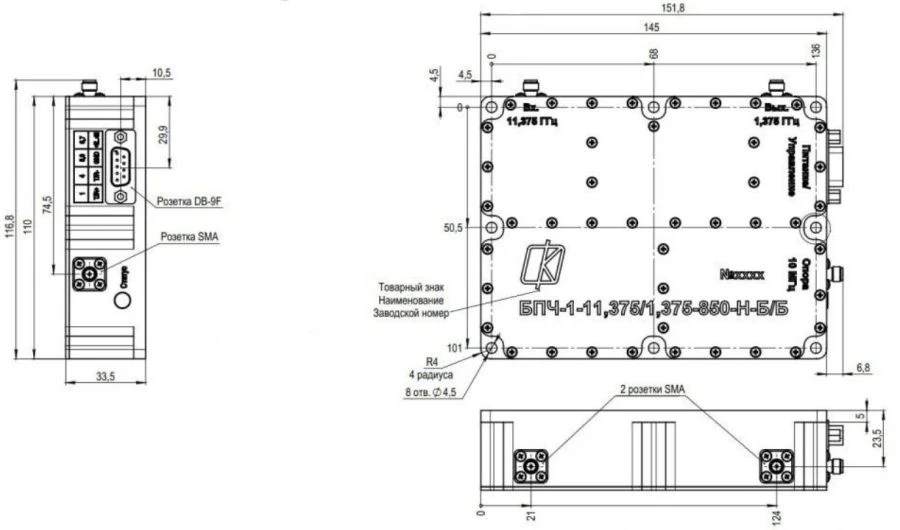

Available for ImportFrequency Transfer Block BPC-1-11.375/1.375-850-N-B/B for Spectrum Transfer
Manufacturer:FLIX LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The device is designed to transfer the frequency spectrum from X band to L band, with the possibility of adjusting the signal gain up to 35 dB. The filter at the output provides filtering of conversion products, sum and difference of received harmonics, suppression of the mirror channel. The bandwidth is 850 MHz.
Specifications
Input frequency range
10950...11800
Output frequency range
950...1800
Transmission coefficient (at least)
15
Transmission ratio adjustment range
15...35
Frequency response irregularity (max.)
3
Input/output VSWR (max.)
1.5
Noise figure (max.)
13
1dB compression point output power (OP1dB, at least)
0.031 W
Heterodyne frequency attenuation (dBn, not less)
60
Mirror channel suppression (dBn, not less)
30
Frequency of the external reference oscillator
10
Internal reference oscillator
Armoured glass
Power supply voltage
B1/B8 2100/900 MHz V
Power consumption (max.)
B1/B8 2100/900 MHz W
Remote monitoring and control
Got it
List of controlled parameters
Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
