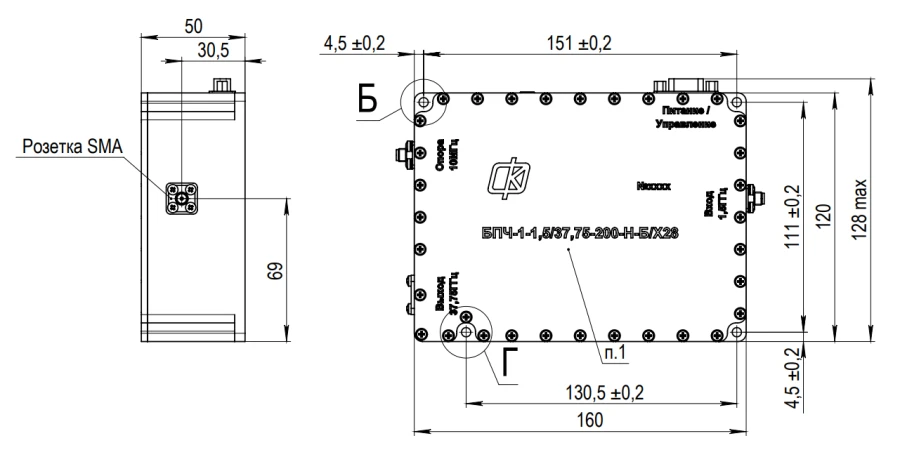

Frequency Transfer Block BPC-1-1.5/37.75-200-N-B/X28 for Signal Amplification

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The device is designed to transfer the frequency spectrum from L band to Ka band, with through signal amplification of 20 dB. The output filter provides filtering of the conversion products, the sum and difference of the received harmonics, and suppression of the mirror channel. The bandwidth is 200 MHz.

Specifications

Input frequency range

1400...1600

Output frequency range

37650...37850

Transmission coefficient (at least)

Frequency response irregularity (max.)

Input VSWR

1.5

VSWR at output

Noise figure (max.)

1dB compression point output power (at least)

0.025 W

Heterodyne input signal attenuation (dBn, not less)

Mirror channel suppression (dBn, not less)

Frequency of the external reference oscillator

Internal reference oscillator

Got it

Power supply voltage

B1/B8 2100/900 MHz V

Power consumption (max.)

8 W

Remote monitoring and control

Yes, via DB-9 connector, RS-485 standard

List of controlled parameters

Status (faulty/faulty), PLL capture (there is capture/not), internal unit temperature (C), current current consumption (A)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
