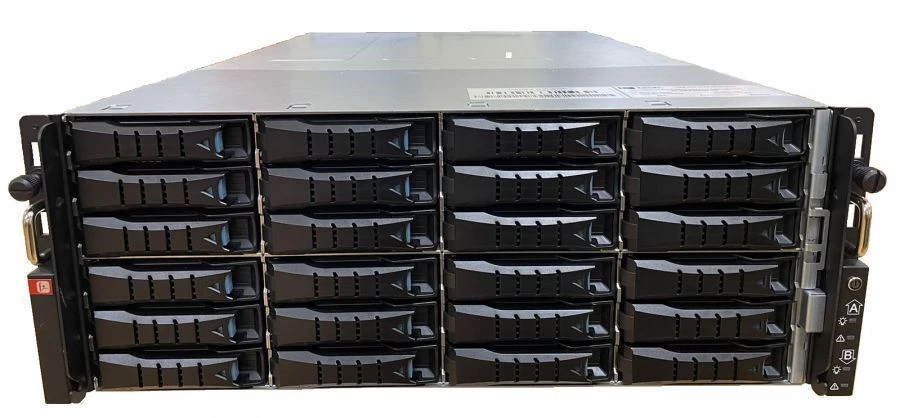

FPD-R-13-DS-4212 Data Storage System - TCRB.466535.002

Available for Import

FPD-R-13-DS-4212 Data Storage System for Building IT Infrastructure

Storage Devices

Manufacturer: F+ EQUIPMENT AND DEVELOPMENTS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

F+ tech data storage systems are designed to build IT infrastructure of the enterprise. Storage systems are designed for installation in standard 19" cabinets and racks. They have two active controllers. Provide high performance and no single point of failure. The storage systems are suitable for work as centralised storage of databases, virtualisation systems, file storage, storage for video surveillance systems, backup, archiving. It is possible to change the configuration of the storage system according to the customer's requirements.

Specifications

Availability of functionality for remote management of storage hardware components

Supported by.

Duplication of storage components

Supported by.

Supports data compression function

Supported by.

Number of power supplies installed in the controller enclosure

2 pcs

Number of storage controllers

2 pcs

Maximum number of storage controller network interfaces

48 pcs

Hot-swappable drives

Available

Power supply capacity of the power supply installed in the controller enclosure

1200 W

Dedicated port for remote management of storage hardware components

RJ-45 100/1000/10000 Mb/s

Possibility to equip with Ethernet ports (1; 10; 40; 100Gb)

Armoured glass

Possibility to equip with InfiniBand ports (64; 100 Gbps)

Optional

Possibility to equip with SAS ports (6; 12; 24 Gb)

Supported by.

Data access protocol support (SMB/CIFS; S3; NFS; iSCSI; Fibre Channel)

Armoured glass

Support for block access protocols

Supported by.

Form factor, unit

Form factor

For 4U rack mounting

Chipset

Intel C621A

Processors

Up to 4 Intel Xeon Scalable 3rd Gen

Rear I/O panel

Got it

RAM

256;512;1024;2048

Available expansion slots

4x PCIe x8 4.0, 6x PCIe x16 4.0

Power subsystem

2 1200 W power supply units

Cooling subsystem

8 cooling fans

Management platform

Optional

Equipment

Optional

Type of remote monitoring and control controller

ASPEED AST2500

Internal slots and connectors in the controller

2x PCIe x8 4.0, 3x PCIe x16 4.0

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
