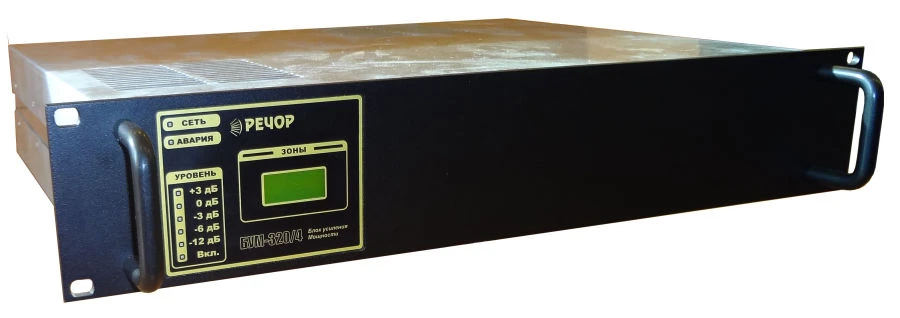

Four-Zone Power Amplifier Block BUM-320/4 for RECHOR Speech Notification System

Available for Import

Four-Zone Power Amplifier Block BUM-320/4 for Enhanced RECHOR Speech Notifications

Security and Fire Control Devices

Manufacturer: RUSSBYT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The four-zone BUM-320/4 power amplification unit is designed to increase the power and expand the number of warning zones of the automatic voice announcement system "RECOR".

Specifications

Voltage supply from AC mains

~220V (+10, -15%), 50Hz

Maximum power consumption from 220 V network

350 W

Power consumption from ~220 V mains in standby mode

10 W

DC backup power supply voltage

30...42 V

Rated voltage of the backup power supply

NZ-150-14,5 V

Current consumed from standby power supply in standby mode

0.2 A

Maximum current consumption from the backup power source

9.7 A

Rated output voltage of the amplifier

100 V

Monitoring the integrity of notification lines - by comparing the continuously measured resistance of the notification line in t

Armoured glass

Rated power of the amplifier

320 W

Power reduction on 36 V standby power supply

Frequency response of the amplifier, at unequal 3 dB

70...20000

Nonlinear distortion at rated output power, not more than

1 %

Adjusting the volume level in the alert mode

Adjusting the volume level in broadcast mode, levels

Unit dimensions (H x W x D), mm

90x490x430

Weight of the unit without packing, not more

10 kg

Mounting type

Desktop or 19" rack mounting

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
