Flexible Low-Soluble Anodic Grounding Electrode MINADAGS ER-6 EPDKUS for Cathodic Protection

Low-Voltage Electrical Panels

Manufacturer: DONKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

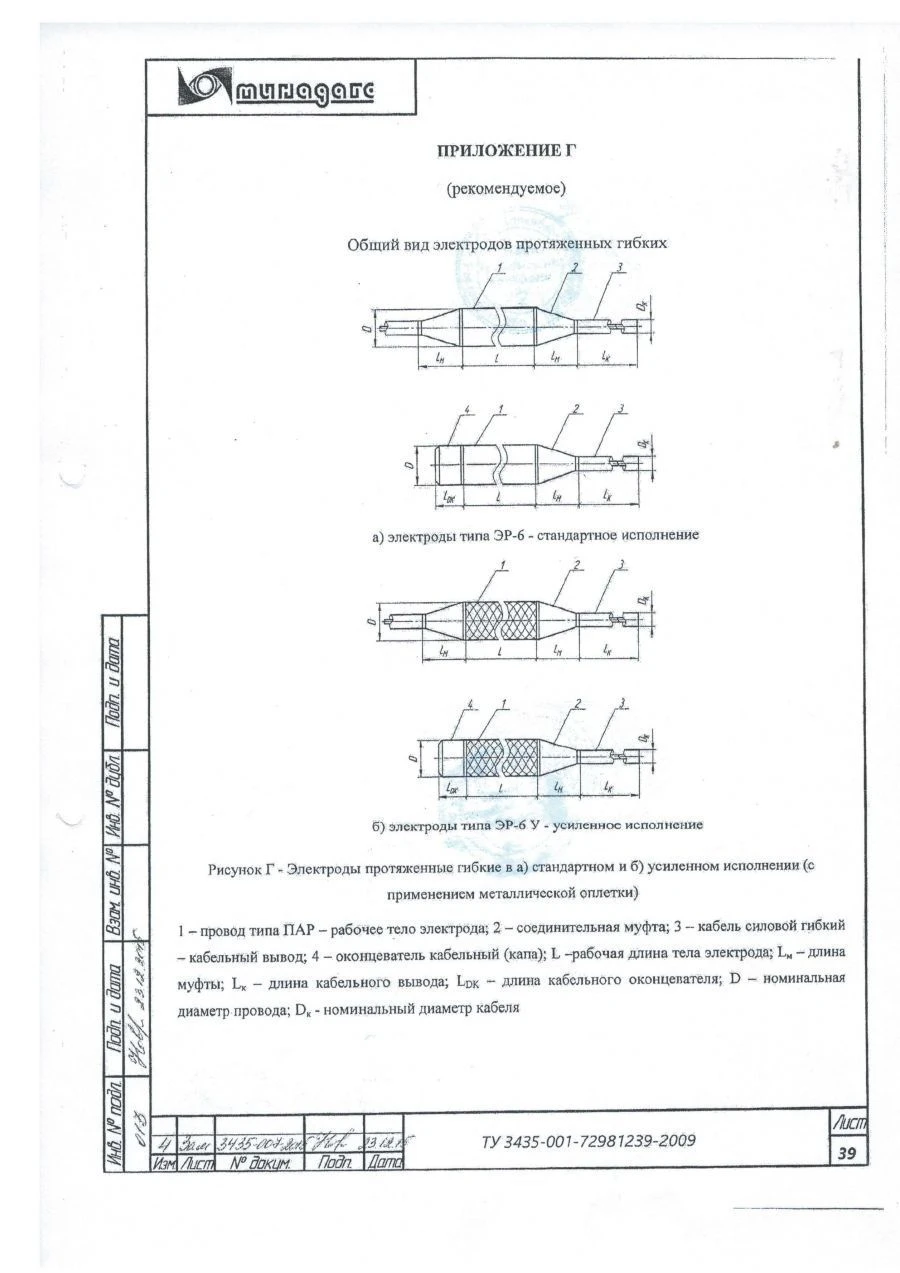

Extended anode earthing electrode of standard construction Minadags ER-6 EPDCMAUS anode Extended anodic earthing electrode of standard construction of the MINADAGS ER-6 EPD brand Extended anodic earthing electrode of standard design MINADAGS ER-6 EPDCMAUS brand anode Extended anode earthing electrode of standard construction of MINADAGS ER-6 RPDM anode grade Extended anode earthing electrode of standard construction Minadags ER-6 EPDMUS anode

Description

Extended flexible low-soluble anode earth electrodes (hereinafter - PA) for application in the system of current-pumping anode earths of installations of cathodic protection of metal structures and constructions against underground corrosion in aqueous media. PAs provide long-term, uninterrupted and efficient flow of protective current from the cathodic protection station through the ground to the protected structure. PAs are designed for operation in soils with any specific electrical resistance, especially in soils with high specific electrical resistance (more than 100 Ohm-m). In soils with low resistivity (less than 100 Ohm-m), double-layer PAs with current-carrying sheaths are used, as well as combinations of PAs with distributed or concentrated anode earth electrodes.

Specifications

Type of construction

ER-6

Material of the electrically conductive sheath of the operating element

E - electrically conductive carbon-filled rubber (elastomer)

Conditions of use

P - subsurface anode

Design and method of placement

E - extended, placed in the ground along the protected structure

Presence and type of electrically conductive carbon backfill (activator)

Material of the backfill containment shell (only for versions with K, KMA backfill)

- abrasion-resistant, moisture-resistant fabric

PA design

- standard version

Reinforced design of the working element construction

RS - hardened core

Working element length, m

5-600

Nominal outer diameter of the working element on electrically conductive polymer sheath, mm

21; 36; 50; 90

Cross-section of copper conductor of the operating element and supply cable, mm²

10; 16; 25; 35; 50.

Tinning of the copper core of the operating element and the lead cable

- non-tinned core; l - tinned core.

Length of cable outlet at the beginning of the work item, m

any length

Length of cable outlet at the end of the work item, m

any length

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
