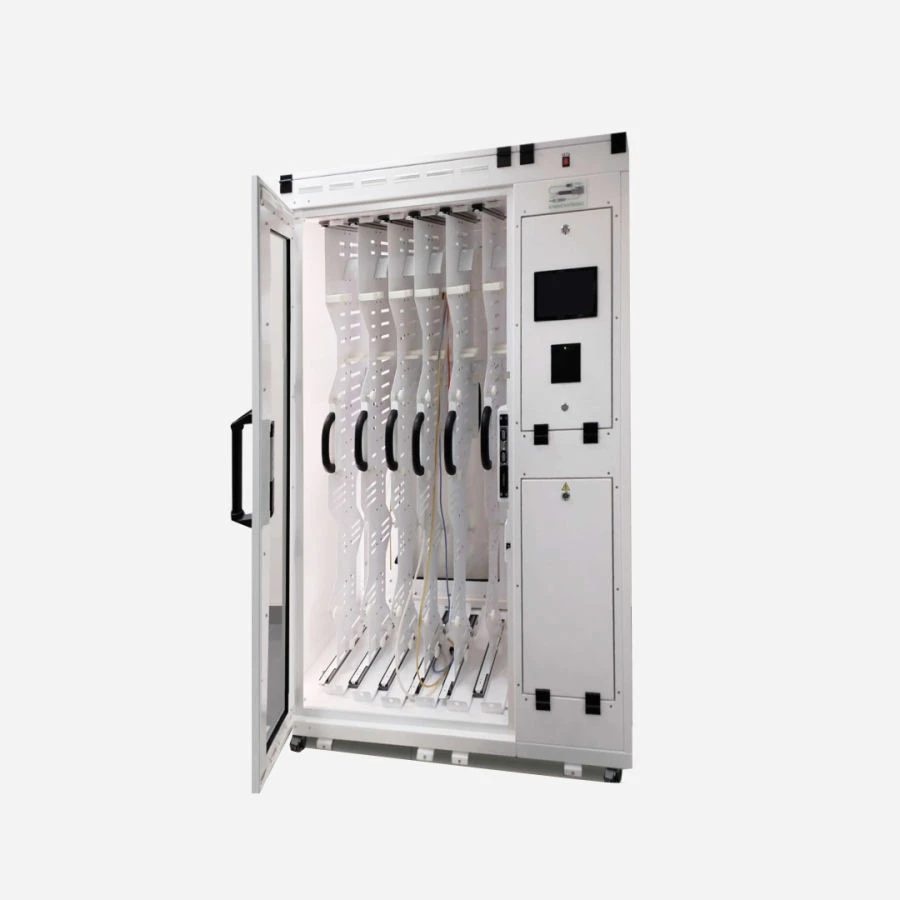

Flexible Endoscope Drying and Storage Cabinet "KLINSKOPBOX" KLINSKOPBOX-6PRO

Available for Import

Flexible Endoscope Drying and Storage Cabinet "KLINSKOPBOX" for Optimal Maintenance

Medical Equipment Supplies

Manufacturer: CBG LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The principle of operation of the cabinet is the forced supply of absolutely purified air into the storage compartment and channels of flexible endoscopes. The endoscope is placed on a special retractable holder, flexible fibroscopes and flexible video endoscopes are connected using a universal specialised adapter. Air flow movement is created by mechanical stimulation of the ventilation unit and oil-free compressors.

The created storage conditions in the cabinet are 336 hours (14 days). Identification of data on the location of flexible endoscopes in the cabinet compartment is registered by the control system (tag, magnetic card, reader). The storage data is displayed on the touch screen and a special light indicator.

Air purification stages create absolutely purified air: coarse purification filter; absolute purification filter; bacterial purification filter. The cabinet has the ability to connect to an external system of compressed air supply MO for blowing the channels of endoscopes.

Specifications

Type of product according to PP RF 616

Medical devices, including surgical, other, not included in other groupings

Removable double-sided moisture tray under each pull-out holder

6 pcs

Double-sided retractable endoscope holders with valve storage baskets

6 pcs

Cupboard with one through compartment

Armoured glass

The fan unit ensures the supply of absolutely cleaned air passed through filters and maintains the overpressure in the

Armoured glass

Power supply 230V / 50 Hz

Armoured glass

Thermal printer

2 pcs

Storage compartment doors with transparent window

Armoured glass

Housing material: powder coated stainless steel

Armoured glass

Technical compartment covers are equipped with keyed locks

Armoured glass

Removable protective skirt for the enclosure support base

Armoured glass

Method of placing endoscopes vertically

Armoured glass

Air preparation is carried out with coarse and fine filters

Armoured glass

Aseptic conditions are achieved with fine cleaning by HEPA filters

Armoured glass

Possibility to operate the cabinet autonomously (air flow production due to the block of fans and compressors)

Armoured glass

Possibility of simultaneous storage of endoscopes

6 pcs

Technical air treatment compartment for the subsequent supply of absolutely purified air to the endoscope storage compartment

Armoured glass

Individual compressor for each air supply position for flexible endoscope channels

Armoured glass

Air curtain to cut off the external air environment from the aseptic air environment when the door is opened

Armoured glass

Possibility to connect the cabinet to a centralized air supply

Armoured glass

Endoscope storage compartment lighting

Armoured glass

Set of adapters for connecting endoscopes of different brands and models to the cabinet

Armoured glass

Color coding of air supply tubes to endoscope channels

Armoured glass

Electronic control unit with digital information display

Armoured glass

Display of filter runtime and storage time for each endoscope

Armoured glass

Color-coded endoscope storage time alarms

Armoured glass

Ability to identify each endoscope with a separate programmable tag

Armoured glass

Possibility of operator identification by means of a programmable magnetic card

Armoured glass

Ability to print checks with storage parameters via built-in thermal printer

Armoured glass

Overall dimensions, length

1340 mm

Overall dimensions, width

810 mm

Overall dimensions, height

1958 mm

Weight without endoscopes

280 kg

The endoscope storage compartment door is equipped with an electromagnetic lock

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
