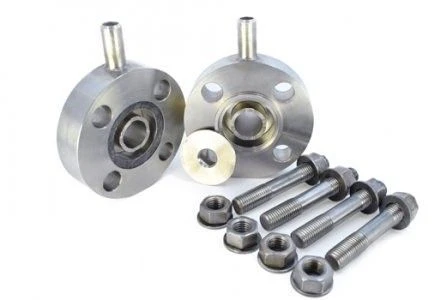

Flanged Chamber Diaphragm DFK DN 20 – DN 40 mm for Liquid and Gas Flow Measurement
Manufacturer:
ITek BBMV LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Creating differential pressure when measuring the flow of liquids, gases, water vapour by the method of variable differential pressure.
- The chamber and flange are structurally combined in one part;
- Nominal pipeline diameter up to 40 mm;
- Nominal pressure in the pipeline up to 10 MPa;
- Angular method of pressure sampling
In the standard version it is manufactured with one pair of pressure sampling connections and provides for welding of pulse lines of 16 mm diameter.
- The chamber and flange are structurally combined in one part;
- Nominal pipeline diameter up to 40 mm;
- Nominal pressure in the pipeline up to 10 MPa;
- Angular method of pressure sampling
In the standard version it is manufactured with one pair of pressure sampling connections and provides for welding of pulse lines of 16 mm diameter.
Specifications
Nominal pressure
Up to 10 MPa
Operating medium
Liquid, steam, gas
Nominal diameter
up to 40 mm
Assigned service life
20 year
Materials in contact with the process medium
Steel 12?18?10? GOST 5632; steel 20 GOST 1050; steel 09G2S GOST 19281
