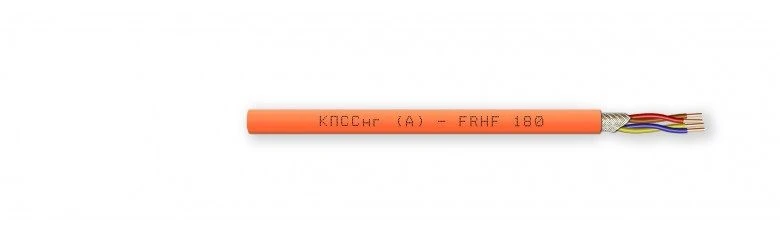

Fire-resistant Cable KPSSng(A)-FRHF 2x2x0.75 for Fire Alarm Systems

Communication Cables & Wires

Manufacturer: ORELTEHKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire-resistant cable KPSSng(A)-FRHF 2x2x0,50 Fire-resistant cable KPSSng(A)-FRHF 2x2x2,50 Fire-resistant cable KPSSng(A)-FRHF 2x2x1,00 Fire-resistant cable KPSSng(A)-FRHF 2x2x0,35 Fire-resistant cable KPSSng(A)-FRHF 2x2õ1,50

Fire-resistant cable of KPSSng(A)-FRHF 2x2x0,20 grade

Description

Cables of increased fire resistance for fire alarm system of paired twisting, with two pairs of conductive copper cores with nominal cross-section 0,75 mm2, insulated with fire-resistant organosilicon rubber, with additional thermal barrier in the form of winding of mica-containing tape, with outer sheath of halogen-free polymer composition, designed for operation at voltage up to 300 V inclusive, alternating current frequency 50 Hz.

Specifications

Electrical resistance of the core

25.5 ohm

Electrical insulation resistance

100000000 ohm

Electrical capacity

7.0E-8

Test voltage between conductors

1000 V

Attenuation factor

1.2

Number of conductive cores

4 pcs

Nominal cross-section of conductive cores

0.75 mm²

Material of conductive cores

Copper

Insulation material of conductive cores

ceramic rubber

Outer sheath material

halogen-free

Rated AC voltage

300 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
