Available for Import

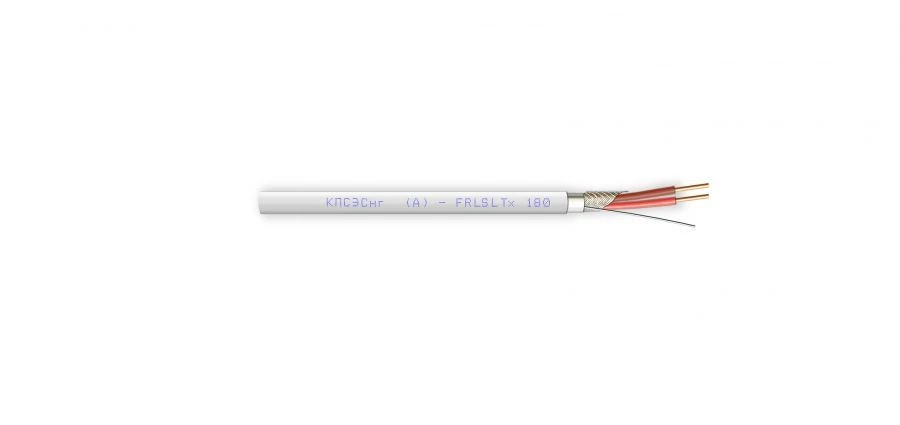

Fire-resistant cable KPSESng(A)-FRLSLTx 1x2x0,75

Communication Cables & Wires

Manufacturer: ORELTEHKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire-Resistant Cable KPSESnG(A)-FRLSLTx 1x2x0.35 Fire-resistant cable of KPSESng(A)-FRLSLTx 1x2õ1,50 grade Fire-resistant cable KPSESng(A)-FRLSLTx 1x2x0,20 Fire-resistant cable KPSESng(A)-FRLSLTx 1x2x2,50 Fire-resistant cable of KPSESng(A)-FRLSLTx 1x2õ0,50 mark

Fire-resistant cable of KPSESng(A)-FRLSLTx 1x2õ1,00 mark

Description

Cables of increased fire resistance shielded for fire alarm system of twisted pair, with one pair of conductive copper cores with nominal cross-section 0,75 mm2, insulated with fire-resistant organosilicon rubber, with additional thermal barrier in the form of winding from mica-containing tape, with a screen of laminated aluminium foil and a drainage conductor under it, with an outer sheath of polyvinyl chloride plastic of reduced fire hazard, with low smoke and gas emission and low toxicity of combustion products, designed for operation at voltages up to 300 V inclusive alternating current frequency of 50 Hz.

Specifications

Rated AC voltage

300 V

Outer sheath material

PVC

Insulation material of conductive cores

ceramic rubber

Material of conductive cores

Copper

Nominal cross-section of conductive cores

0.75 mm²

Number of conductive cores

2 pcs

Electrical resistance of the core

25.5 ohm

Electrical insulation resistance

100000000 ohm

Electrical capacity

-800000000

Test voltage between conductors

1500 V

Attenuation factor

1.2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
