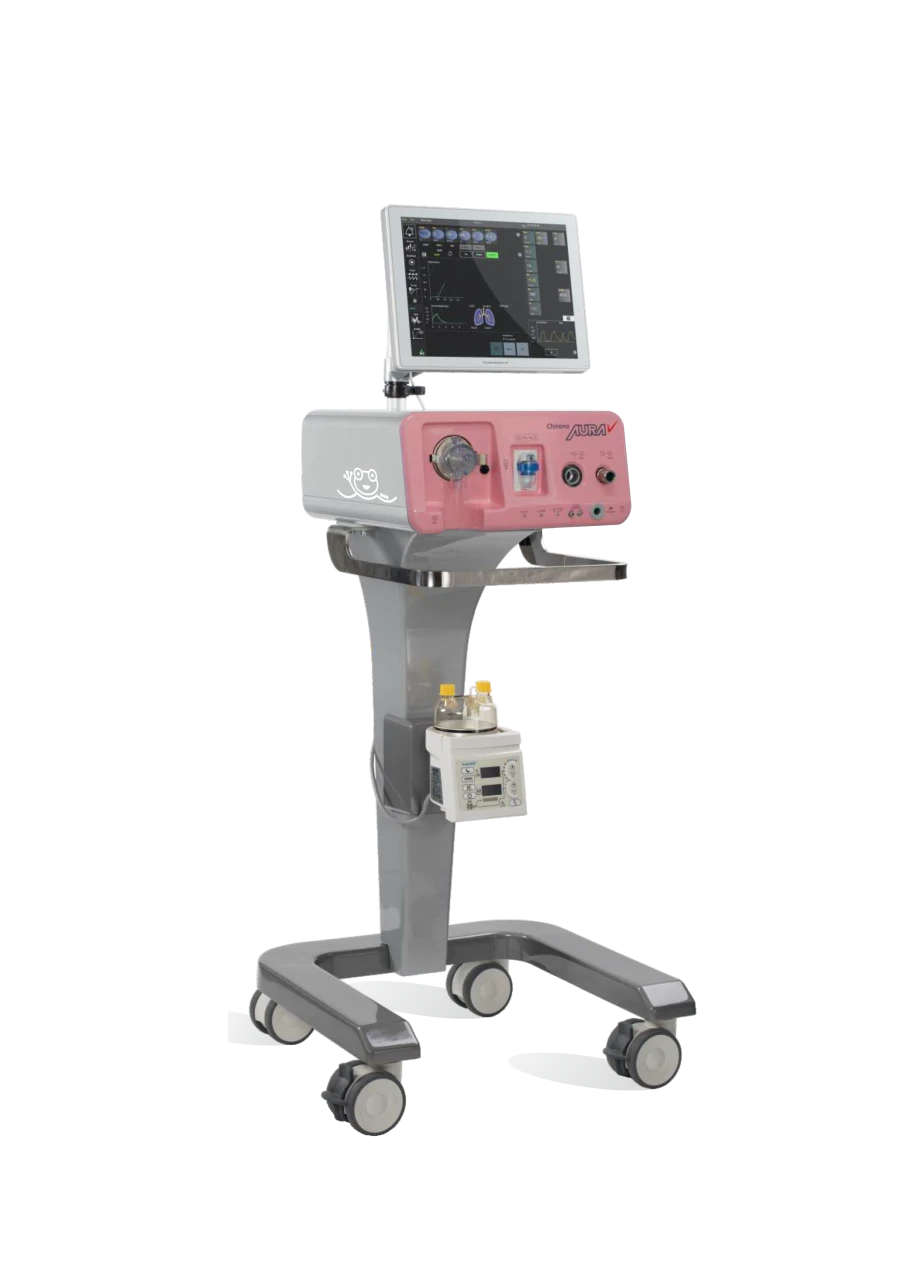

Expert Class Mechanical Ventilator Chirolog SV AURA Profi for Neonatology Applications

Inhalation Anaesthesia Machines

Manufacturer: HIRANA+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

An expert-class ventilator. Equipped with a 15" colour touch screen with the ability to rotate and change the angle of view, as well as the possibility of its attachment separately from the device, capnography module, paramagnetic sensor O2 and CO2, ultrasonic nebulizer, humidifier with automatic temperature control of the air mixture. The device is silent in operation.

It is equipped with a module of computer support of lung ventilation and a compressor of medical compressed air. The device is designed for prolonged ventilation in adults, children and newborns, including those with extremely low body weight (from 500 g). PCV - pressure controlled ventilation SIMV-v - PS - Synchronised Assisted Ventilation, both volume and pressure controlled with pressure assisted inspiratory support PS/CPAP/nCPAP - ventilation designed for pressurised inspiratory support.

2-level(APRV/BIPAP) - ventilation at two pressure levels with pressure support at both levels...

Specifications

Respiratory volume

2...20000

Respiratory rate

1...180

Minute ventilation

0.1...350

Weight

65 kg

Power supply voltage

121 V

Inspiratory time Ti

10...90 %

Inspiration pause Tp

0...75 %

Inhalation to exhalation ratio

1:299 - 9:1

Rated supply voltage

110...240 V

Operating time from own power supply at standard parameters

Respiratory rate, cpm

1...180

Compressed air supply pressure, kPa x 100

2.8...6

Peak flow, l/min

0-240; (0-120)

Minute ventilation, l/min

0.1...35

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
