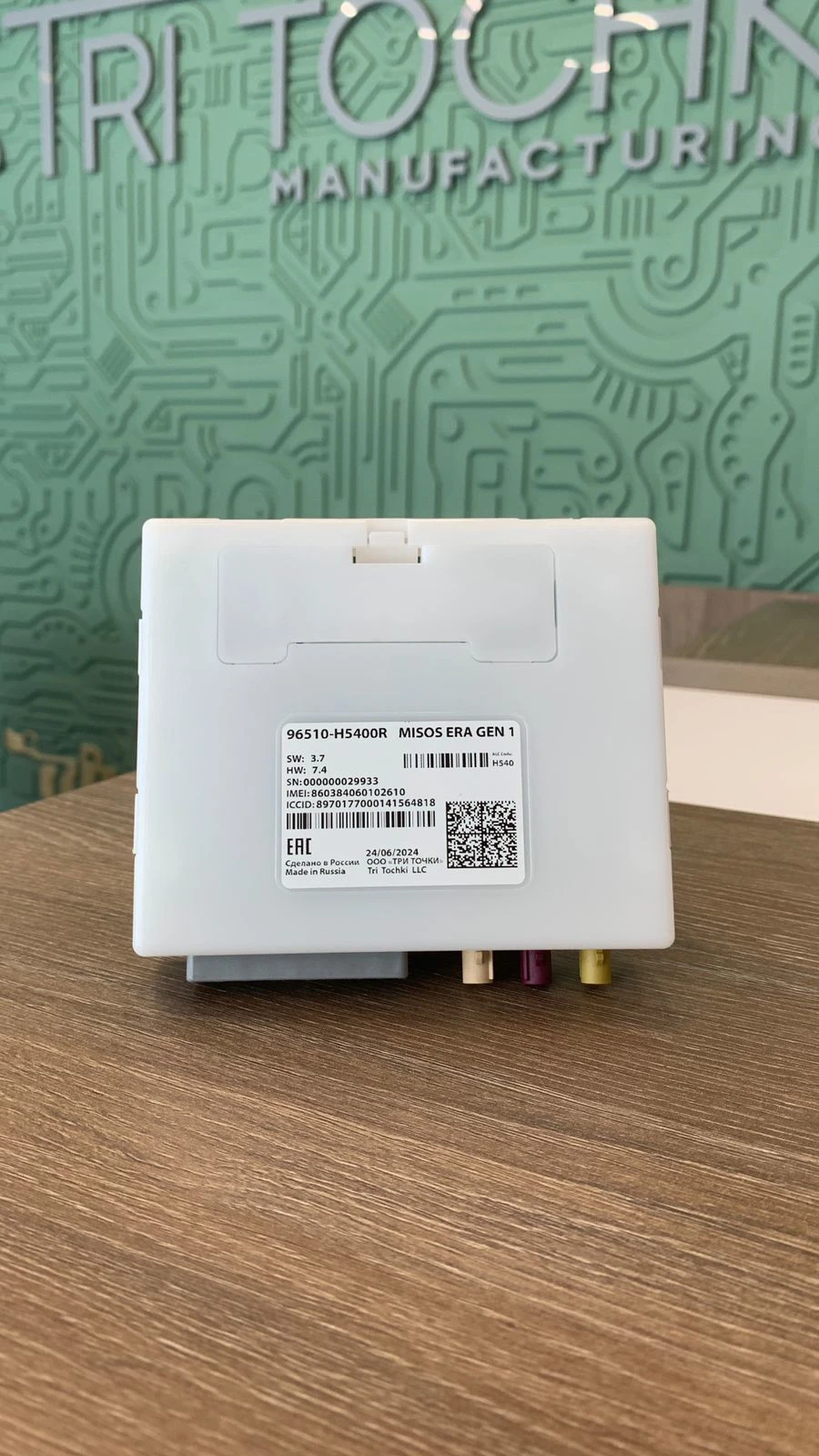

Emergency Response Control Unit for Vehicle Communication - MISOS ERA GEN1

Emergency Response Control Unit MISOS ERA GEN1 for Vehicle Communication in Emergencies

Manufacturer:THREE POINTS LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The control unit provides the transmission of a message about the vehicle at road traffic and other accidents, in automatic and manual mode, and provides two-way voice communication with emergency operational services over the networks of mobile operators in the territory of the Russian Federation. When a road traffic accident occurs, in automatic or manual mode, the minimum required data set (MND) about the vehicle is transmitted to the operator of the emergency operational service. The MND is transmitted by means of a tone modem. If the MND has not been transmitted via tone modem within 20 seconds from the start of transmission, the device automatically transmits the MND via SMS. MISOS ERA GEN1" Control Unit is powered from the on-board network of the vehicle or the built-in battery, if necessary.

Specifications

Rated supply voltage
B1/B8 2100/900 MHz V
Current consumption in operating mode
0.25 A
GSM 900 transmitter power
2 W
GSM transmitter power 1800
1 W
UMTS900 transmitter power
0.25 W
UMTS2100 transmitter power
0.25 W
Radio channel structure
Multi-slot mode
Number of GLONASS/GPS receiver channels
at least 32
Frequency of location data update
1
Type of GLONASS/GPS antenna
built-in
SIM card type
SIM chip
Country of manufacture
Russia
Permissible supply voltage range
8...16 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
