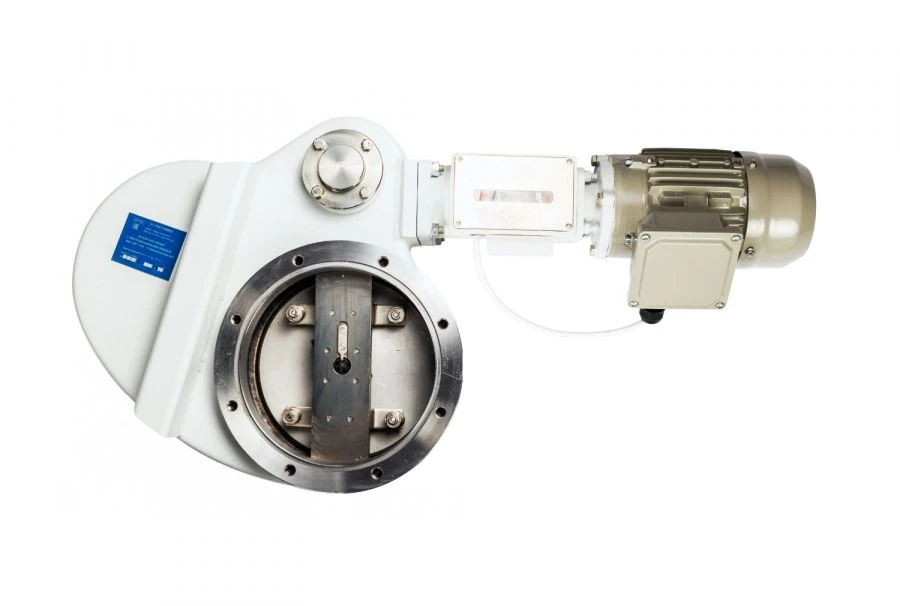

Electromechanical Vacuum Valve 2ЗВЭ-160 for Vacuum System Control

Pipeline Control Valves

Manufacturer: VACUUMASH OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Electromechanical vacuum gate 2ZVE-160 with a nominal bore of 100 mm is designed for shutting off vacuum systems in the range of working pressure from 1x10 -6 to 1x1,07x10 5 Pa. It is manufactured in climatic version UHL4 and O4 according to GOST 15150-69. working environment - air and non-aggressive gases. Electromechanical vacuum gate 2ZVE-160 is not intended for use in fire-explosive production.

Specifications

Conductivity (theoretical) in molecular mode, l /s, not less than

3340 l/s

Tightness norm, l - Pa/s, not more than

1x10 -7 l - Pa/c

Power consumption at the moment of opening (closing), W, max.

100 W

Pressure difference in closed position on either side of the flap, Pa, not more than

1,07?10 5

Permissible pressure difference at flap opening, Pa, not more than

1,33?10 3

Nominal bore, mm

160 mm

Overall dimensions, mm, not more

720x370x147 mm

Weight, kg, not more

24 kg

Time of opening (closing) of the gate from the electric actuator, s, not more than
