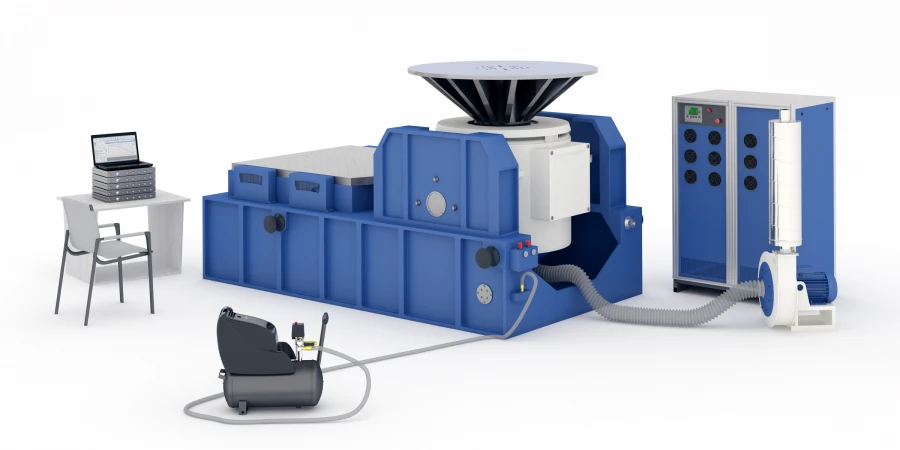

Electrodynamic Vibration Testing System VSV-260D-445 GSS for Accurate Vibration Testing

Electrodynamic vibration test rig Designed for reproduction of sinusoidal vibrations, broadband random vibration, shock loads, and other types of vibration. Design features: table diameter 445 mm., availability of horizontal table (GSS), frequency range 5-2200 Hz, displacement (amplitude) at zero load not less than 38 mm., acceleration (amplitude) at zero load not less than 980m/s2, ejection force 60 kN., mass (maximum) load 800. Advantages: the system of positioning and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
