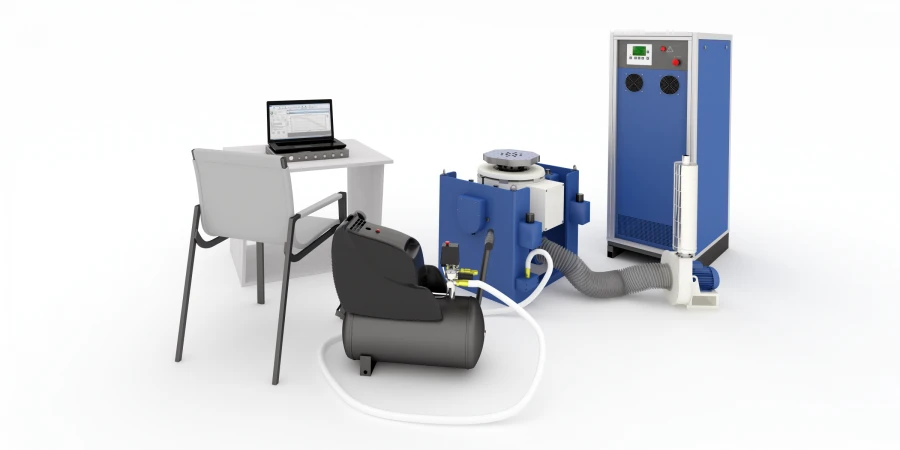

Electrodynamic Vibration Testing System VSV-206-230 for Sinusoidal and Random Vibrations

Electrodynamic vibration test rig Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration. Design features Table diameter 230 mm., frequency range 5-4000 Hz, displacement (peak-to-peak) 51 mm., acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 6 kN., mass (maximum) load 300 kg. Advantages positioning system and super movement of the mobile system in vertical position and in horizontal position developed by Rostov Technics Ltd, power amplifier (modules, controller) developed and produced by Rostov Technics Ltd, amplifier control software developed by Rostov Technics Ltd.
