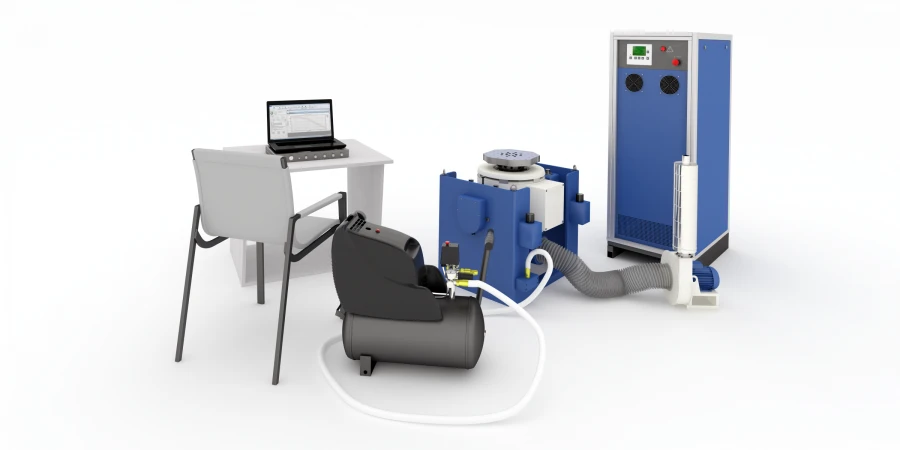

Electrodynamic Vibration Testing System VSV-202-150 for Accurate Vibration Testing

Vibration Testing Stands

Manufacturer: ROSTECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Vibration electrodynamic test rig VSV-203-150 Vibration electrodynamic test rig VSV-201-150

Description

Electrodynamic vibration test rig Designed for reproduction of sinusoidal vibrations, broadband random vibration, shock loads, and other types of vibration. Design features Table diameter 150 mm., frequency range 5-4500 Hz, displacement (peak-to-peak) 25 mm., acceleration (amplitude) at zero load not less than 600 m/s2, ejection force 2 kN., mass (maximum) load 70 kg. Advantages positioning system and super movement of the mobile system in vertical position and in horizontal position developed by Rostov Technics Ltd, power amplifier (modules, controller) developed and produced by Rostov Technics Ltd, amplifier control software developed by Rostov Technics Ltd.

Specifications

Ejection force

2000

Type of product according to PP RF 616

other instruments and devices for measurement, control and testing

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Type of product according to PP RF 616

8.6.2

Frequency range

5...4500

Moving (peak-to-peak)

25 mm

Speed (amplitude)

1.8

Acceleration (amplitude)

600

Maximum load

70 kg

Forcing force (sinusoidal)

2000

Forcing force (random broadband)

1400

Compulsive force (percussive classical)

4000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
