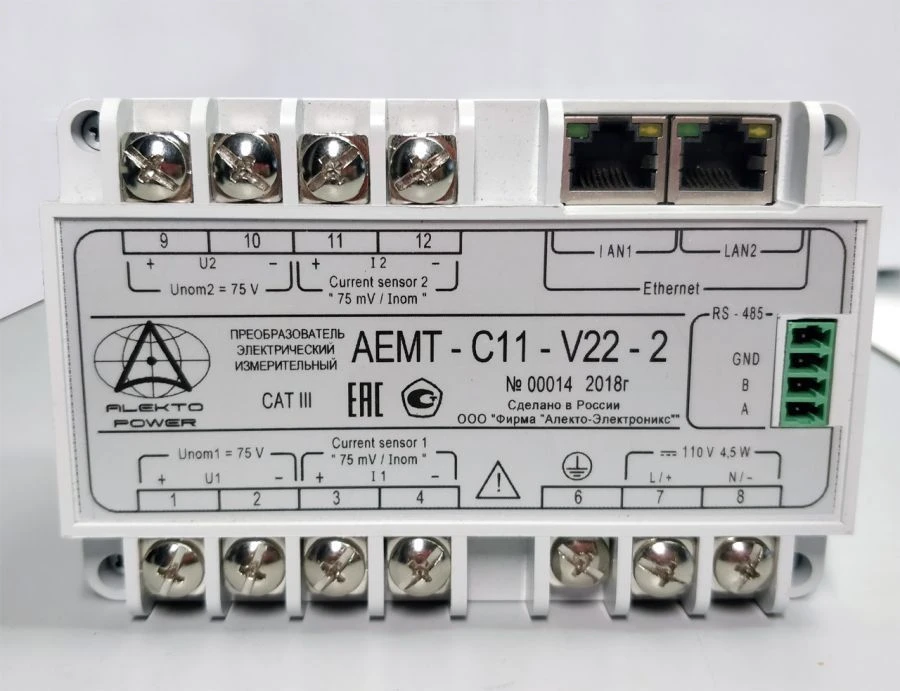

Electric Measurement Converter AEMT for DC and AC Current

Brand: AEMT

$90 - $360 USD

MOQ: 20 pieces

Key Features

Type of digital protocol: Protocols of data transmission over rs-485 interface: modbus-rtu; modbus-ascii; mec 60870-5-101 or "extdev" protocols of data transmission over ethernet interface: modbus-tcp/ip and mec 60870-5-104.

Mounting of the measuring transducer (MT): Can be mounted in a closed cabinet or panel

Description

The converter is designed to measure electrical quantities of direct and alternating current, convert them into coded signals and transmit the results via two independent communication interfaces.
independent communication interfaces.
The converter can be used as part of the measuring channels of automated control systems, to monitor the state of operating current cabinets and other industrial
technical objects.

Data transmission protocols:
- on RS-485 interface: MODBUS-RTU, MODBUS-ASCII, IEC 60870-5-101, "ExtDev";
- over IEEE 802.3 (Ethernet) interface: MODBUS-TCP/IP, IEC 60870-5-104.

The type of power supply is determined when ordering:
- universal - from a source of direct current with rated voltage 220 V or from a source of alternating current with rated voltage 230 V with frequency 50 Hz (60 Hz);
- from a source of direct current with nominal voltage of 110 V;
- from a source of direct current with nominal voltage, set by agreement with the consumer, but not more than 100 V.
