Available for Import

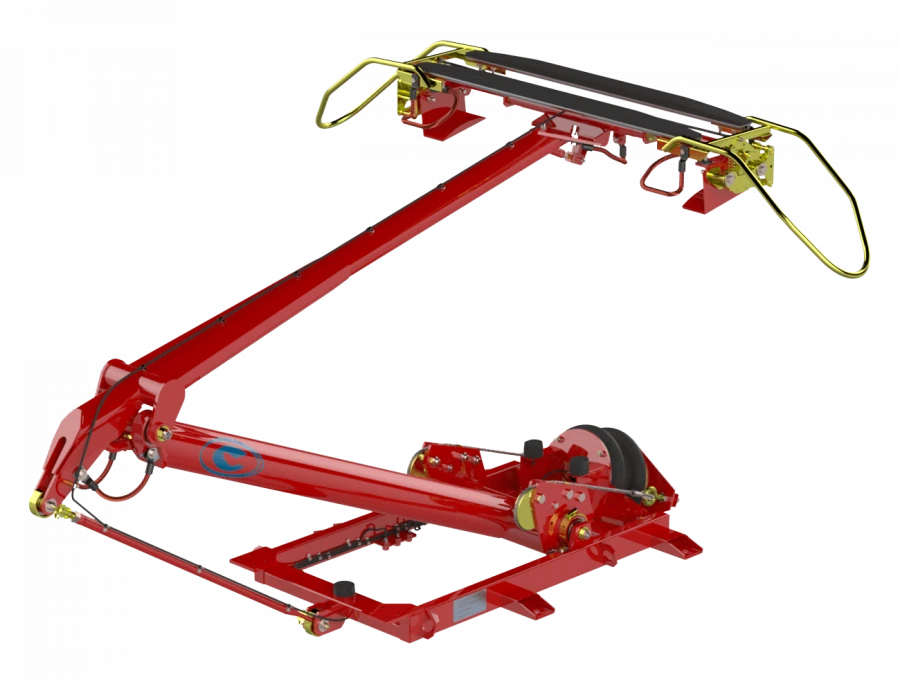

Electric Current Collector TA 20-SET 160 1400 for Traction Equipment

High Voltage Switchgear

Manufacturer: S ELECTROTANSPORT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The traction electric apparatus designed to create electrical contact between the electrical equipment of the rolling stock (EPS) and the contact network.

It is equipped with an automatic lowering system, which is triggered when the current collector is raised to a height of more than 7000 mm above the rail head level and when the slide inserts are destroyed.

Current draw of up to 1400 A when travelling and up to 300 A when parked, from the contact network voltage of 3000 V DC and 27 kV AC and the speed of the EPS up to 160 km/h.

It has an improved characteristic in comparison with LA 19-SET 160 1200..

Specifications

Assignment

Yagry electrical apparatus designed to create electrical contact between the electrical equipment of rolling stock (EPS) and the contact network.

Removable current when travelling from 3000 V DC and 27 kV AC overhead contact line and speed E

1400 A

Equipped with automatic lowering system, which is triggered when the current collector is raised to a height of more than 7000 m

7000 mm

Characterization

Has improved performance compared to LA 19-SET 160 1200.
