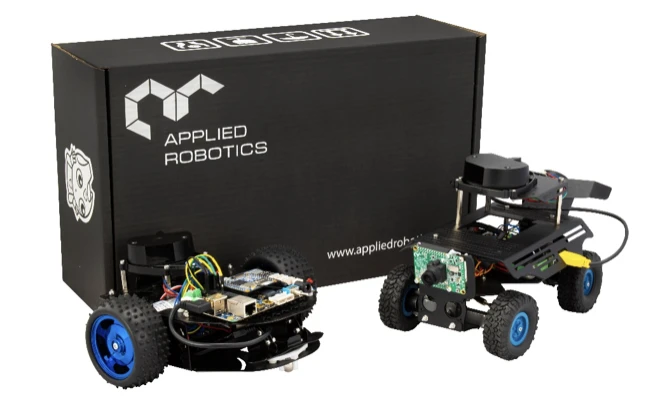

Educational Kit for Developing Autonomous Mobile Robots - AR-TB3 for Learning Robotics

Educational Demo Devices

Manufacturer: APPLIED ROBOTICS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The training kit for studying autonomous mobile robots is a set for developing models of mobile robots with different kinematics - two-wheeled chassis with differential kinematics, chassis with steering kinematics of automotive type, four-wheeled chassis of omnidirectional movement.
The kit includes information systems and devices for developing the control system of the mobile robot - programmable controller with integrated microcomputer, vision module, stereo vision module, laser scanning rangefinder, inertial system, software for indoor navigation.
The control system of the mobile robot allows analysing the environment during the movement of the mobile robot, forming a map of the local environment around the robot and building a global map of the surrounding space.

Specifications

Mobile robot

1 pcs

Drive of drive wheels

2 pcs

Лазерный сканирующий дальномер

1 pcs

Measuring range (Laser scanning rangefinder)

120...3200 mm

Linear measurement error (Laser scanning range finder)

5 %

Scanning Sector (Laser Scanning Rangefinder)

360

Infrared sensor array

1 pcs

Number of built-in IR sensors (Infrared Sensor Array)

7 pcs

Line sensor module

3 pcs

Position sensor module

1 pcs

Color sensor module

1 pcs

Programmable controller

1 pcs

Battery pack

1 pcs

Training manual in Russian

1 pcs

Equipment

Battery pack, Laser scanning rangefinder, Vision module, Stereo vision module, Drive wheel drive, Programmable module with integrated algorithmic software

Interfaces

Bluetooth, I2C, MicroSD, PWM, SPI, TTL, WiFi, For Microphone Connection

Communication with similar modules via busbar

Compliance

Availability of embedded software

Compliance

Number of wheels

2 pcs

Number of built-in vision modules

2 pcs

Number of processor cores

4 pcs

Number of different objects detected simultaneously in the module's field of view

10 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
