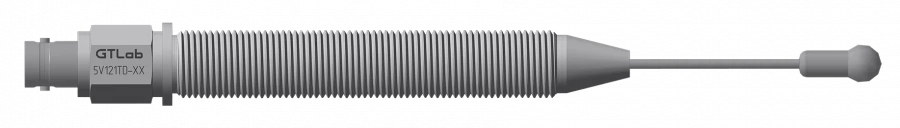

Dynamic Pressure Sensors with Spherical Sensitive Element 5V121TD-XX

Available for Import

Dynamic Pressure Sensors with Spherical Sensitive Element for Accurate Measurements

Vibration Measurement Equipment

Manufacturer:GTLAB LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Dynamic pressure sensors with spherical sensing element are designed for measuring parameters of shock waves and rapidly variable pressures in liquid and gaseous media.

Specifications

Upper measurement limit

1 000 kPa | 2 500 kPa | 6 000 kPa | 10 000 kPa

Conversion factor

5 mV/kPa | 2 mV/kPa | 0.8 mV/kPa | 0.5 mV/kPa

Limits of permissible basic error reduced to the upper limit of measurement

± 2%

Upper limit of the operating frequency range

> 25 kHz

Operating temperature range

- 30 ... + 50 °?

Output impedance

< 100 ohms

Power supply: ? voltage ? current

+ (15 ... 30) V 2 ... 20 mA

DC output voltage level

8 ... 11 ?

Sensing element material

CTC-19

Housing material

stainless steel

Housing design

M14×1.25 thread

Degree of protection against external influences

IP65

Weight (without cable and connector)

110 ?

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
