Disk Varistor 230V, 4.5kA (8/20) for Circuit Protection - VR14D361K

Manufacturer:HAKEL OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

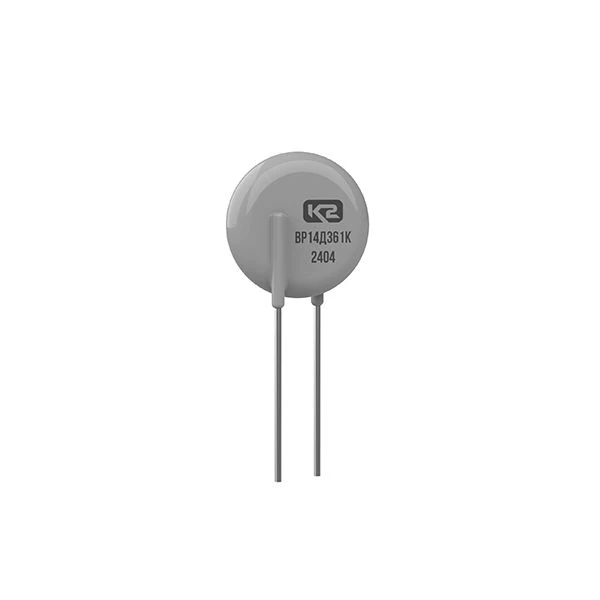

VR14D361K - varistor of KVS series, 230 V, 4.5 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, uninsulated.

Maximum disk thickness

8 mm

Maximum disk diameter

17 mm

Operating temperature range

-60...85 °C

Maximum pulse energy (2 ms)

64.8

Permissible amplitude of a single current pulse (8/20 µs)

4500 A

Maximum continuous operating voltage

300 V

Maximum AC operating voltage

230 V

Classification rated voltage at 1 mA current

360 V
