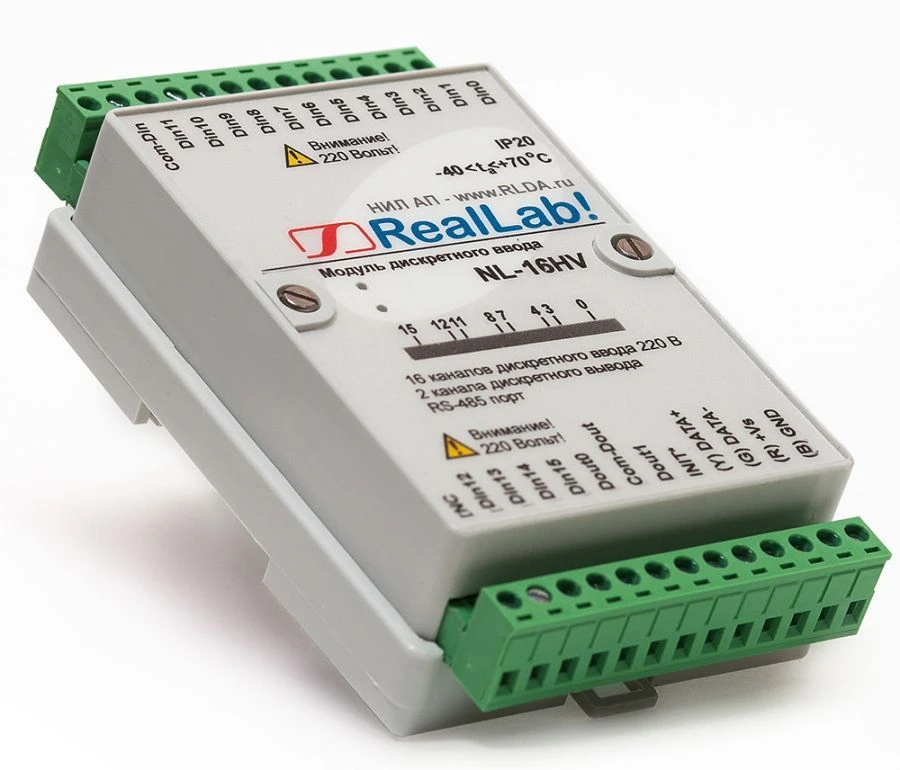

Discrete Signal Input Module up to 220V NL-16HV

Discrete Signal Input Module up to 220V NL-16HV

Brand: RealLab!

$15 - $48 USD

MOQ: 200 pieces

Key Features

Size: 123x76x33

Assignment: designed for binary input of signals up to 220 V

Material: ABS plastic impact resistant

Operating conditions: operating temperature range from -40 to +70 °C

Supplier Information

NIL AP LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from RealLab!

Intelligent Power Supply with RS-485 Interface NLS-1512

$15-$48

Intelligent Power Supply with RS-485 Interface NLS-4524

$15-$48

Programmable Logic Controller NC-8DI-4R

$90-$300

RTD Signal Converter NT-2RTD-2AO for 4-20 mA Output

$150-$480

Intelligent Power Supply with RS-485 Interface NLS-6012

$21-$60

Dual Channel Intrinsically Safe Power Supply SLA-2P-DC-DC-24

$15-$48

Signal Converter for Thermocouples NT-2TI-2AO

$90-$300

Spark Protection Barrier for Thermocouple Signal Transfer SL-1T

$9-$36

Intrinsically Safe Signal Isolator with Relay Output SLAN-DI-R

$15-$48

Intelligent Power Supply with RS-485 Interface NLS-6024

$21-$60

Thermocouple Signal Input Module NLS-8TI-24V

$90-$300

Intrinsically Safe Signal Transmitter for Resistance Thermometers SLAN-RTD-M

$15-$48

Power Supply Unit for Devices, Model PS-1536

$9-$30

Intelligent Power Supply NLS-500-12 with RS-485 Interface

$210-$600

CAN to USB Interface Converter NLS-CAN-USB

$15-$48

Discrete Input Module NLS-16DI-CAN

$15-$48

Intrinsically Safe Signal Converter SLA-2I-4-20

$90-$300

12V Power Supply PS-6012 with Wide Input Voltage Range

$15-$48

Power Supply Source PS-3036

$15-$48

Analog Output Module NLS-4AO for Voltage/Current Control

$42-$150

Description

Module of discrete input of signals up to 220 V NL-16HVPurpose:designed for discrete input of signals up to 220 VConnection:16 channels of discrete input of signals 220 V with group isolationDisplay:LED displayProtection types:11 types of protection: from overvoltage and current overload on input, output, interface, from overheating, static electricity, etc.Galvanic isolation:voltage of galvanic isolation 3,7 kVUlevel of logical zero:not more than 60 VLevel of logical one:from ~100 V to ~250 VTemperature:operating temperature range from -40 to +70 SIInterface connection:RS-485 interfaceProtocols:protocol by default - DCON (ADAM-compatible) and MODBUS RTU (enabled by software)Dimensions:123x76x33Warranty:18 months
